RD 51

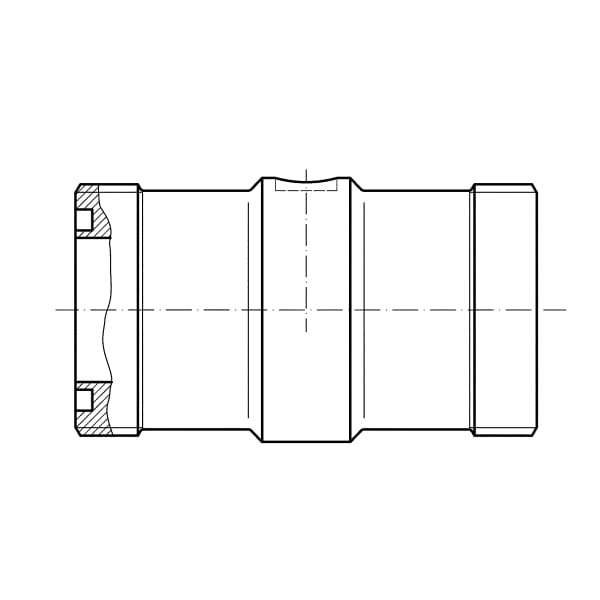

In-line chemical seals for hygienic processes

for dairy fitting DIN 11851
no T piece required in pipe
easy, fast installation in pipe

For use with Bourdon tube pressure gauges, pressure transducers or pressure switches. For flowing, corrosive and highly viscous media; designed for direct installation in pipes. Typical application areas:
Biochemical applications
Food and luxury food industry
Beverages industry
Pharmaceutical industry

process connection, standard	Process connection	Instrument connection	Nominal diameter	Nominal pressure	minimum range* (in bar) at nominal size				Part no.
process connection, standard	63	Instrument connection	Nominal diameter	Nominal pressure	100	160	DMU
Threaded socket SMS 1147	DN 1"	Welded connection		PN 40	1.6 bar	2.5 bar		1.6 bar	31371W
Threaded socket SMS 1147	DN 1½"	Welded connection		PN 40	1.6 bar	2.5 bar	4 bar	1.6 bar	31372W
Threaded socket SMS 1147	DN 2"	Welded connection		PN 40	1 bar	1.6 bar	2.5 bar	1.6 bar	31373W
Threaded socket SMS 1147	DN 2½"	Welded connection		PN 40	1 bar	1.6 bar	2.5 bar	1.6 bar	31374W
Threaded socket SMS 1147	DN 3"	Welded connection		PN 40	1 bar	1.6 bar	1.6 bar	1.6 bar	31375W

in-stock items
manufactured goods

Process connection/tubus

: Stainless steel 316 L

: Threaded socket SMS 1147

diaphragm

: Stainless steel 316 L, welded to body, no dead space

Instrument connection

: Stainless steel 316 L

: Welded connection

pressure transmission liquid

: Paraffin oil (FM 09), FDA-listed

pressure range: see overview of versions

Nominal pressure: PN 40
