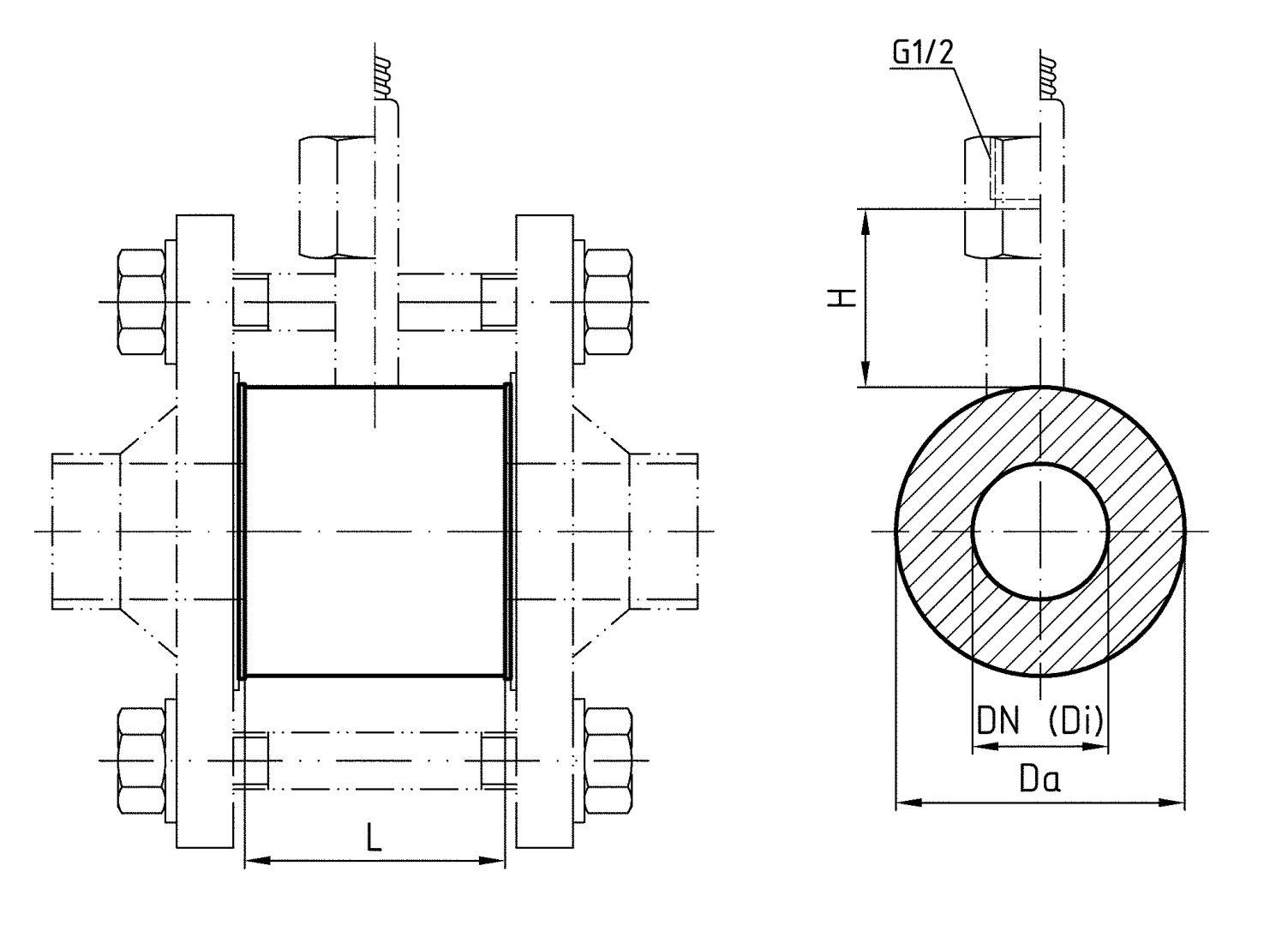

Images 3 RD 80 Rohrdruckmittler Zwischenflanschausführung Variants Documents Benefits easy intermediate flange installation in the pipevarious nominal sizesvarious nominal pressuresSpecial materials (option) Application For use with Bourdon tube pressure gauges, pressure transducers or pressure switches. For flowing, corrosive and highly viscous media, for direct installation in pipes. Variants Technical data Technical drawings Downloads Variants Process connectionNominal diameterInstrument connectionNominal pressureminimum range* (in bar) at nominal sizePart no.63100160DMUintermediate flange version for flanges as per EN 1092-1 type B 2DN 25G½ female threadPN 4-4001.6 bar2.5 bar1.6 bar31355intermediate flange version for flanges as per EN 1092-1 type B 2DN 40G½ female threadPN 4-4001.6 bar2.5 bar4 bar1.6 bar31356intermediate flange version for flanges as per EN 1092-1 type B 2DN 50G½ female threadPN 4-4001.6 bar2.5 bar2.5 bar1 bar31357intermediate flange version for flanges as per EN 1092-1 type B 2DN 65G½ female threadPN 4-4001.6 bar2.5 bar2.5 bar1 bar31956intermediate flange version for flanges as per EN 1092-1 type B 2DN 80G½ female threadPN 4-4001.6 bar2.5 bar2.5 bar1 bar31358 in-stock items manufactured goods Technical data Process connection/tubusStainless steel 316 Lintermediate flange version for flanges as per EN 1092-1 type B 2diaphragmStainless steel 316 L, welded to body, no dead spaceInstrument connectionStainless steel 316 LG½ female threadpressure transmission liquidParaffin oil (FM 09)pressure rangesee overview of versionsNominal pressurePN 4-400 Technical drawings Click the corresponding image for detail views, additional information and dimension tables. intermediate flange version for flanges as per EN 1092-1 type B 2 DNDiPNDaLH2528,54-40068100294043,14-40088100295054,54-400100100296570,34-400120100298082,54-4001386029 Downloads AFRISO_ROHRDRUCKMITTLER-ZWISCHENFLANSCHAUSFUEHRUNG_DEU_DEU.PDF Data sheets Industrial technology PDF English German Druckmittler PDF Italian English German
AFRISO_ROHRDRUCKMITTLER-ZWISCHENFLANSCHAUSFUEHRUNG_DEU_DEU.PDF Data sheets Industrial technology PDF English German
