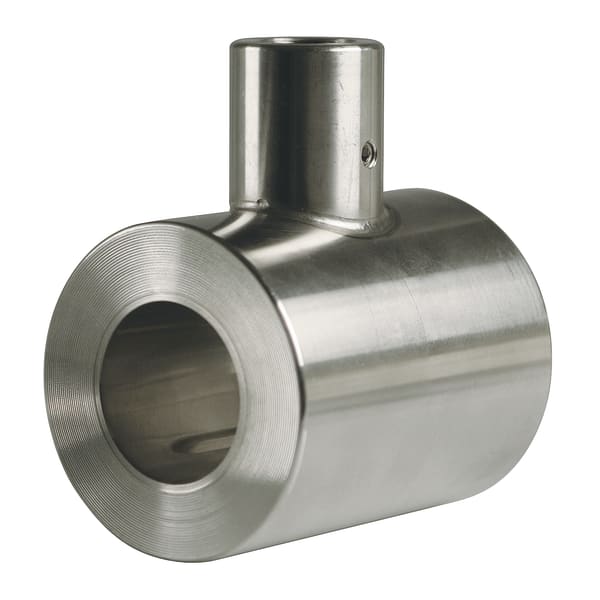

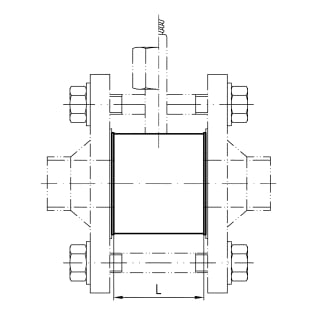

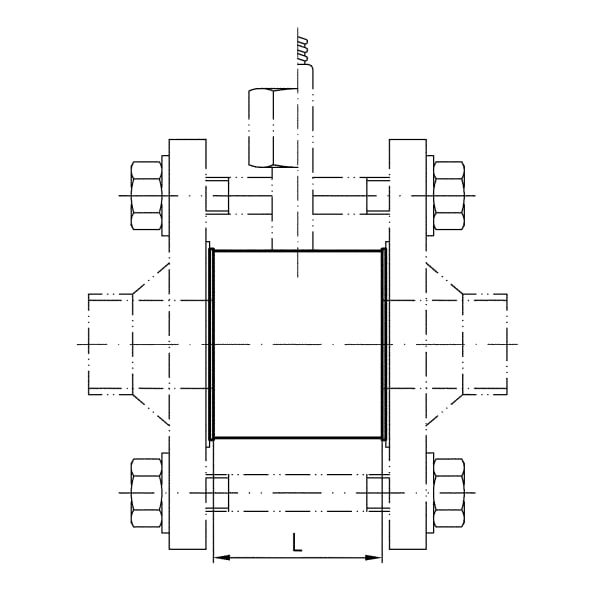

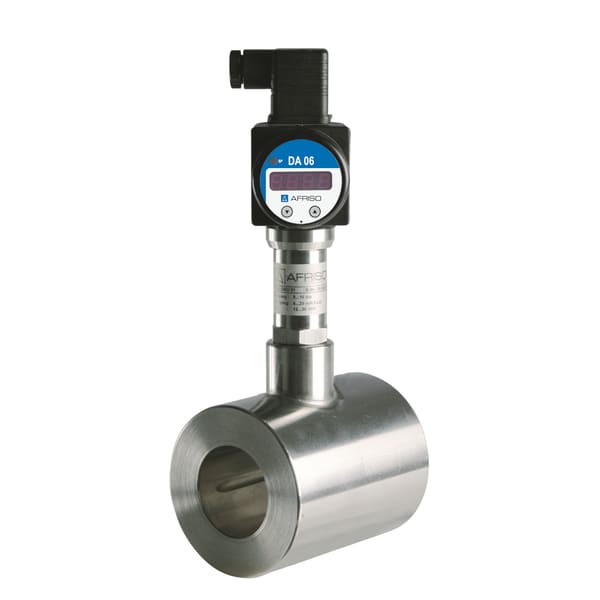

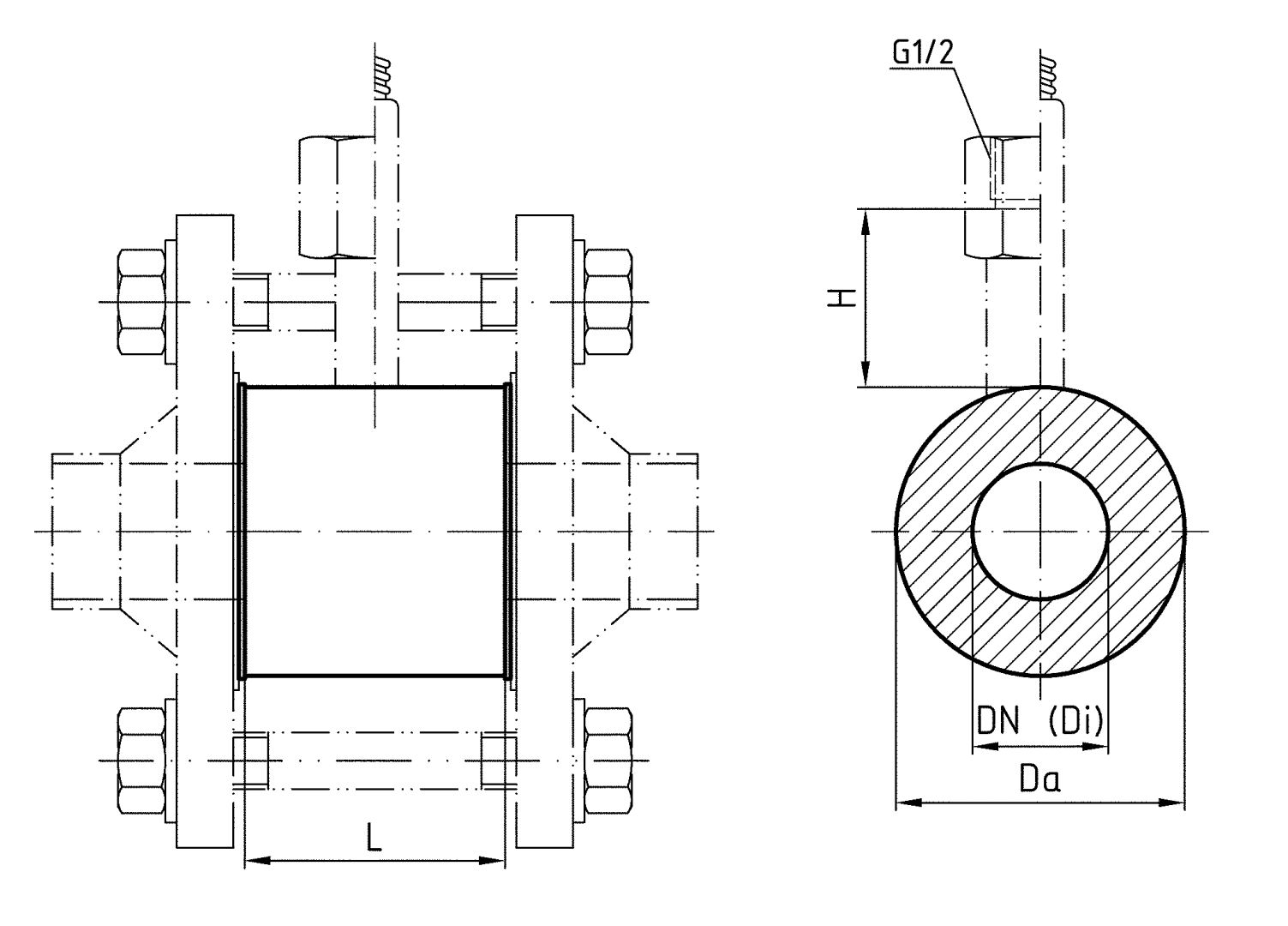

Images 3 RD 80 Rohrdruckmittler Zwischenflanschausführung Variants Documents Benefits easy intermediate flange installation in the pipevarious nominal sizesvarious nominal pressuresSpecial materials (option) Application For use with Bourdon tube pressure gauges, pressure transducers or pressure switches. For flowing, corrosive and highly viscous media, for direct installation in pipes. Variants Technical data Technical drawings Downloads Variants process connection, standardProcess connectionInstrument connectionNominal diameterNominal pressureminimum range* (in bar) at nominal sizePart no.63100160DMUintermediate flange version for flanges according to ASME B 16.5DN 1"G½ female threadCL 150-6.0001.6 bar2.5 bar1.6 bar31360intermediate flange version for flanges according to ASME B 16.5DN 1½"G½ female threadCL 150-6.0001.6 bar2.5 bar4 bar1.6 bar31361intermediate flange version for flanges according to ASME B 16.5DN 2"G½ female threadCL 150-6.0001.6 bar2.5 bar2.5 bar1 bar31362intermediate flange version for flanges according to ASME B 16.5DN 3"G½ female threadCL 150-6.0001.6 bar2.5 bar2.5 bar1 bar31363intermediate flange version for flanges according to ASME B 16.5DN 4"G½ female threadCL 150-6.0001.6 bar2.5 bar2.5 bar1 bar31364 in-stock items manufactured goods Technical data Process connection/tubusStainless steel 316 Lintermediate flange version for flanges according to ASME B 16.5diaphragmStainless steel 316 L, welded to body, no dead spaceInstrument connectionStainless steel 316 LG½ female threadpressure transmission liquidParaffin oil (FM 09)pressure rangesee overview of versionsNominal pressureCL 150-6.000 Technical drawings Click the corresponding image for detail views, additional information and dimension tables. intermediate flange version for flanges according to ASME B 16.5 DNDiCLDaLH1"28,5150-6.00050100291½"43,1150-6.00073,2100292"54,5150-6.00091,9100293"82,5150-6.00012760294"107,1150-6.000157,26029 Downloads Druckmittler PDF Italian English German
