Standard capsule pressure gauges Type D4

AFRISO Kapselfeder-Standardmanometer KP100 0/40mbar G1/2B radial Kl.1,6 D401 VOR 11050 11060 11070 11080 11090 11100 7450 7460 7470 7480 7490 7500 7510 7520 7530 7540 7550 7560 7570 7580 7590 7600 7610 7620 7720 7730 7740 7750 7760 7770 7780 7790 7800 7810 7820 7830 7840 7850 7860 7870 7880 7890 object_image_47656imagemain_en AFRISO Kapselfeder-Standardmanometer KP100 0/40mbar G1/2B radial Kl.1,6 D401 VOR 11050 11060 11070 11080 11090 11100 7450 7460 7470 7480 7490 7500 7510 7520 7530 7540 7550 7560 7570 7580 7590 7600 7610 7620 7720 7730 7740 7750 7760 7770 7780 7790 7800 7810 7820 7830 7840 7850 7860 7870 7880 7890 object_image_47656imagemain_en
Kapselfeder-Standardmanometer KP100 0/40mbar G1/2B radial Kl.1,6 D401
AFRISO Kapselfeder-Standardmanometer KP100 0/40mbar G1/2B radial Kl.1,6 D401 VOR 11050 11060 11070 11080 11090 11100 7450 7460 7470 7480 7490 7500 7510 7520 7530 7540 7550 7560 7570 7580 7590 7600 7610 7620 7720 7730 7740 7750 7760 7770 7780 7790 7800 7810 7820 7830 7840 7850 7860 7870 7880 7890 object_image_47656imagemain_en
AFRISO Kapselfeder-Standardmanometer KP100 0/40mbar G1/2B radial Kl.1,6 D401 SAR 11050 11060 11070 11080 11090 11100 7450 7460 7470 7480 7490 7500 7510 7520 7530 7540 7550 7560 7570 7580 7590 7600 7610 7620 7720 7730 7740 7750 7760 7770 7780 7790 7800 7810 7820 7830 7840 7850 7860 7870 7880 7890 AFRISO Kapselfeder-Standardmanometer KP100 0/40mbar G1/2B radial Kl.1,6 D401 SAR 11050 11060 11070 11080 11090 11100 7450 7460 7470 7480 7490 7500 7510 7520 7530 7540 7550 7560 7570 7580 7590 7600 7610 7620 7720 7730 7740 7750 7760 7770 7780 7790 7800 7810 7820 7830 7840 7850 7860 7870 7880 7890
Kapselfeder-Standardmanometer KP100 0/40mbar G1/2B radial Kl.1,6 D401
AFRISO Kapselfeder-Standardmanometer KP100 0/40mbar G1/2B radial Kl.1,6 D401 SAR 11050 11060 11070 11080 11090 11100 7450 7460 7470 7480 7490 7500 7510 7520 7530 7540 7550 7560 7570 7580 7590 7600 7610 7620 7720 7730 7740 7750 7760 7770 7780 7790 7800 7810 7820 7830 7840 7850 7860 7870 7880 7890
AFRISO Kapselfeder-Standardmanometer KP100 0/40mbar G1/2B radial Kl.1,6 D401 RUE 11050 11060 11070 11080 11090 11100 7450 7460 7470 7480 7490 7500 7510 7520 7530 7540 7550 7560 7570 7580 7590 7600 7610 7620 7720 7730 7740 7750 7760 7770 7780 7790 7800 7810 7820 7830 7840 7850 7860 7870 7880 7890 AFRISO Kapselfeder-Standardmanometer KP100 0/40mbar G1/2B radial Kl.1,6 D401 RUE 11050 11060 11070 11080 11090 11100 7450 7460 7470 7480 7490 7500 7510 7520 7530 7540 7550 7560 7570 7580 7590 7600 7610 7620 7720 7730 7740 7750 7760 7770 7780 7790 7800 7810 7820 7830 7840 7850 7860 7870 7880 7890
Kapselfeder-Standardmanometer KP100 0/40mbar G1/2B radial Kl.1,6 D401
AFRISO Kapselfeder-Standardmanometer KP100 0/40mbar G1/2B radial Kl.1,6 D401 RUE 11050 11060 11070 11080 11090 11100 7450 7460 7470 7480 7490 7500 7510 7520 7530 7540 7550 7560 7570 7580 7590 7600 7610 7620 7720 7730 7740 7750 7760 7770 7780 7790 7800 7810 7820 7830 7840 7850 7860 7870 7880 7890
AFRISO Kapselfeder-Standardmanometer KP100 0/25mbar G1/2B radial Kl.1,6 D201 ILL 10830 10840 10850 10860 10870 10880 10890 10900 10910 10940 10950 10960 10970 10980 10990 11000 11010 11020 11050 11060 11070 11080 11090 11100 4170 4180 4190 4200 4210 4220 4230 4240 4250 4260 4270 4280 4290 4300 4310 4320 4330 4340 4370 4380 4390 4400 4410 4420 4430 4440 4450 4460 4470 4480 4490 4500 4510 4520 4530 4540 4570 4580 4590 4600 4610 4620 4630 4640 4650 4660 4670 4680 4690 4700 4710 4720 4730 4740 5200 5210 5220 5230 5240 5250 5260 5270 5280 5290 5300 5310 5320 5330 5340 5350 5360 5370 5400 5410 5420 5430 5440 5450 5460 5470 5480 5490 5500 5510 5520 5530 5540 5550 5560 5570 5600 5610 5620 5630 5640 5650 5660 5670 5680 5690 5700 5710 5720 5730 5740 5750 5760 5770 7250 7260 7270 7280 7290 7300 7310 7320 7330 7340 7350 7360 7370 7380 7390 7400 7410 7420 7450 7460 7470 7480 7490 7500 7510 7520 7530 7540 7550 7560 7570 7580 7590 7600 7610 7620 7650 7660 7670 7680 7690 7700 7720 7730 7740 7750 7760 7770 7780 7790 7800 7810 7820 7830 7840 7850 7860 7870 7880 7890 AFRISO Kapselfeder-Standardmanometer KP100 0/25mbar G1/2B radial Kl.1,6 D201 ILL 10830 10840 10850 10860 10870 10880 10890 10900 10910 10940 10950 10960 10970 10980 10990 11000 11010 11020 11050 11060 11070 11080 11090 11100 4170 4180 4190 4200 4210 4220 4230 4240 4250 4260 4270 4280 4290 4300 4310 4320 4330 4340 4370 4380 4390 4400 4410 4420 4430 4440 4450 4460 4470 4480 4490 4500 4510 4520 4530 4540 4570 4580 4590 4600 4610 4620 4630 4640 4650 4660 4670 4680 4690 4700 4710 4720 4730 4740 5200 5210 5220 5230 5240 5250 5260 5270 5280 5290 5300 5310 5320 5330 5340 5350 5360 5370 5400 5410 5420 5430 5440 5450 5460 5470 5480 5490 5500 5510 5520 5530 5540 5550 5560 5570 5600 5610 5620 5630 5640 5650 5660 5670 5680 5690 5700 5710 5720 5730 5740 5750 5760 5770 7250 7260 7270 7280 7290 7300 7310 7320 7330 7340 7350 7360 7370 7380 7390 7400 7410 7420 7450 7460 7470 7480 7490 7500 7510 7520 7530 7540 7550 7560 7570 7580 7590 7600 7610 7620 7650 7660 7670 7680 7690 7700 7720 7730 7740 7750 7760 7770 7780 7790 7800 7810 7820 7830 7840 7850 7860 7870 7880 7890
Kapselfeder-Standardmanometer KP100 0/25mbar G1/2B radial Kl.1,6 D201
AFRISO Kapselfeder-Standardmanometer KP100 0/25mbar G1/2B radial Kl.1,6 D201 ILL 10830 10840 10850 10860 10870 10880 10890 10900 10910 10940 10950 10960 10970 10980 10990 11000 11010 11020 11050 11060 11070 11080 11090 11100 4170 4180 4190 4200 4210 4220 4230 4240 4250 4260 4270 4280 4290 4300 4310 4320 4330 4340 4370 4380 4390 4400 4410 4420 4430 4440 4450 4460 4470 4480 4490 4500 4510 4520 4530 4540 4570 4580 4590 4600 4610 4620 4630 4640 4650 4660 4670 4680 4690 4700 4710 4720 4730 4740 5200 5210 5220 5230 5240 5250 5260 5270 5280 5290 5300 5310 5320 5330 5340 5350 5360 5370 5400 5410 5420 5430 5440 5450 5460 5470 5480 5490 5500 5510 5520 5530 5540 5550 5560 5570 5600 5610 5620 5630 5640 5650 5660 5670 5680 5690 5700 5710 5720 5730 5740 5750 5760 5770 7250 7260 7270 7280 7290 7300 7310 7320 7330 7340 7350 7360 7370 7380 7390 7400 7410 7420 7450 7460 7470 7480 7490 7500 7510 7520 7530 7540 7550 7560 7570 7580 7590 7600 7610 7620 7650 7660 7670 7680 7690 7700 7720 7730 7740 7750 7760 7770 7780 7790 7800 7810 7820 7830 7840 7850 7860 7870 7880 7890
AFRISO Kapselfeder-Standardmanometer KP100 0/40mbar G1/2B radial Kl.1,6 D401 VOR 11050 11060 11070 11080 11090 11100 7450 7460 7470 7480 7490 7500 7510 7520 7530 7540 7550 7560 7570 7580 7590 7600 7610 7620 7720 7730 7740 7750 7760 7770 7780 7790 7800 7810 7820 7830 7840 7850 7860 7870 7880 7890 object_image_47656imagemain_en
AFRISO Kapselfeder-Standardmanometer KP100 0/40mbar G1/2B radial Kl.1,6 D401 SAR 11050 11060 11070 11080 11090 11100 7450 7460 7470 7480 7490 7500 7510 7520 7530 7540 7550 7560 7570 7580 7590 7600 7610 7620 7720 7730 7740 7750 7760 7770 7780 7790 7800 7810 7820 7830 7840 7850 7860 7870 7880 7890
AFRISO Kapselfeder-Standardmanometer KP100 0/40mbar G1/2B radial Kl.1,6 D401 RUE 11050 11060 11070 11080 11090 11100 7450 7460 7470 7480 7490 7500 7510 7520 7530 7540 7550 7560 7570 7580 7590 7600 7610 7620 7720 7730 7740 7750 7760 7770 7780 7790 7800 7810 7820 7830 7840 7850 7860 7870 7880 7890
AFRISO Kapselfeder-Standardmanometer KP100 0/25mbar G1/2B radial Kl.1,6 D201 ILL 10830 10840 10850 10860 10870 10880 10890 10900 10910 10940 10950 10960 10970 10980 10990 11000 11010 11020 11050 11060 11070 11080 11090 11100 4170 4180 4190 4200 4210 4220 4230 4240 4250 4260 4270 4280 4290 4300 4310 4320 4330 4340 4370 4380 4390 4400 4410 4420 4430 4440 4450 4460 4470 4480 4490 4500 4510 4520 4530 4540 4570 4580 4590 4600 4610 4620 4630 4640 4650 4660 4670 4680 4690 4700 4710 4720 4730 4740 5200 5210 5220 5230 5240 5250 5260 5270 5280 5290 5300 5310 5320 5330 5340 5350 5360 5370 5400 5410 5420 5430 5440 5450 5460 5470 5480 5490 5500 5510 5520 5530 5540 5550 5560 5570 5600 5610 5620 5630 5640 5650 5660 5670 5680 5690 5700 5710 5720 5730 5740 5750 5760 5770 7250 7260 7270 7280 7290 7300 7310 7320 7330 7340 7350 7360 7370 7380 7390 7400 7410 7420 7450 7460 7470 7480 7490 7500 7510 7520 7530 7540 7550 7560 7570 7580 7590 7600 7610 7620 7650 7660 7670 7680 7690 7700 7720 7730 7740 7750 7760 7770 7780 7790 7800 7810 7820 7830 7840 7850 7860 7870 7880 7890
Data sheet Standard capsule pressure gauges Type D4
AFRISO Data sheet Standard capsule pressure gauges Type D4

Benefits

  • With zero correction
  • Optional overpressure and/or underpressure safety 10 x FSD
  • Extremely low measuring ranges from 0/6 mbar
  • GOSSTANDART-certified

Application

For gaseous, dry media which do not attack copper alloys.

! For measuring gas or vapour, observe the table "Selection Criteria as per EN 837-2" (see appendix)!

Versions

Housing ⌀ Connection Alignment Housing Accuracy class Range Type Part no. Remember
100 mm G½B Bottom Stainless steel 304 1,6 0/40 mbar KP100 D401 35117401
100 mm G½B Bottom Stainless steel 304 1,6 0/60 mbar KP100 D401 35118401
100 mm G½B Bottom Stainless steel 304 1,6 0/100 mbar KP100 D401 35119401
100 mm G½B Bottom Stainless steel 304 1,6 0/160 mbar KP100 D401 35120401
100 mm G½B Bottom Stainless steel 304 1,6 0/250 mbar KP100 D401 35121401
100 mm G½B Bottom Stainless steel 304 1,6 0/400 mbar KP100 D401 35122401

Blue part no. = in-stock items

Description Format Language Download / Link
Data sheet Standard capsule pressure gauges Type D4 Data sheet PDF
AFRISO Data sheet Standard capsule pressure gauges Type D4
Mounting of pressure gauge Operating instructions PDF
AFRISO Mounting of pressure gauge
Bourdon tube pressure gauges, capsule pressure gauges, diaphragm pressure gauges RF...Ex, KP...Ex, PF...Ex Operating instructions PDF
AFRISO Bourdon tube pressure gauges, capsule pressure gauges, diaphragm pressure gauges RF...Ex, KP...Ex, PF...Ex
Bourdon tube pressure gauges, capsule pressure gauges, diaphragm pressure gauges, spring diaphragm pressure gauge for differential pressure Operating instructions PDF
AFRISO Bourdon tube pressure gauges, capsule pressure gauges, diaphragm pressure gauges, spring diaphragm pressure gauge for differential pressure
Dials for pressure gauges – graduation Technical information PDF
AFRISO Dials for pressure gauges – graduation
ATEX certificate pressure gauges Products PDF
AFRISO ATEX certificate pressure gauges
STP file (3D) KP100_D401_351XX401 CAD file STP AFRISO STP file (3D) KP100_D401_351XX401
Type
D4
Nominal size
100
Accuracy class (EN 837-3/6)
1,6
Ranges (EN 837-3/5)
See ordering table
Application area
Static load:
Full scale value
Dynamic load:
0.9 x full scale value
Overload safety:
1.3 x full scale value
Operating temperature range
Medium:
Max. 60 °C
Ambient:
-20/+60 °C
Temperature performance
Indication error when the temperature of the measuring system deviates from the normal temperature of 20 °C:
at rising temperature approx. ± 0.6 %/10 K
falling temperature approx. ± 0.6 %/10 K
of full scale value
Degree of protection
NG 100:
IP 54 (EN 60529)

Standard design

Connection
Brass, bottom
Measuring element
Capsule element, CuBe alloy
Movement
Brass
Zero correction
From the front
Seal
NBR (Perbunan)
Dial
Aluminium, white
Scaling black
Pointer
Aluminium, black
Housing
Stainless steel 304
Bayonet type bezel
Stainless steel 304
Window
D401:
Instrument glass

Options

  • Overpressure and underpressure safety 10 x FSD
  • Back flange
  • Panel mounting bezel, with window, plastic
  • 3-hole fixing, panel mounting bezel with window, plastic
  • Damping screw
  • Reference pointer
  • Special scales
  • Other process connections
Click the corresponding image for detail views, additional information and dimension tables.

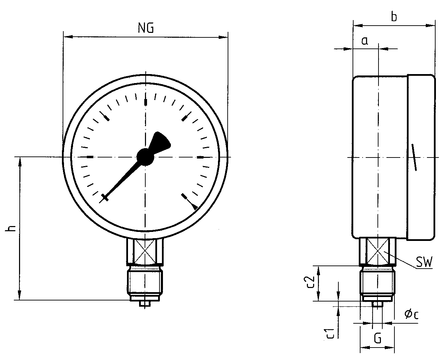

Bottom connection
AFRISO
Bottom connection
AFRISO
Dimensions (mm):
NG a b ∅c c1 c2 G h SW
63 10,8 40 5 2 13 G¼B 53 14
100 15,6 49 6 3 20 G½B 86 22
160 17,5 50 6 3 20 G½B 116 22
