Raumthermostat RT 01 | 86017

Raumthermostat für Regelklemmleiste WB 01/WB 10 D

in-stock items

Documents

compact, modern design
easy surface mounting or mounting to standard in-wall switch boxes
either as 230 V or as battery version
suitable for heating and cooling

Determination of the actual ambient temperature and adjustment of the reference value for the room temperature. Can also be used for cooling (manual switching).

The room thermostat RT 01 is a part of the complete system FloorControl for single-room temperature control. Each room thermostat measures the actual ambient temperature and switches the output to obtain the required reference temperature. The reference value for the room temperature is adjusted by means of the keys. The integrated display shows the values. The actual temperature in rooms with an underfloor heating system is compared to the reference temperature on an ongoing basis.
Versions:

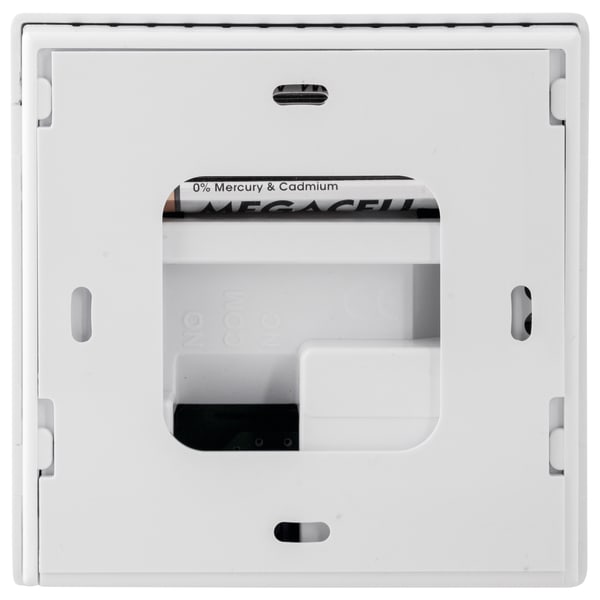

RT 01 D-BAT: Version with battery, suitable for wall mounting
RT 01 D-230: 230 V version, suitable for mounting to standard junction boxes/in-wall switch boxes

Operating temperature range

Ambient:: 5/50 °C

Storage:: 5/50 °C

Temperature adjustment range

: 5/35 °C

Accuracy:: ± 0.5 K

Supply voltage

: RT 01 D-BAT:

: 2 x 1.5 V AAA batteries

Nominal power

: RT 01 D-BAT:

NC:: max. AC 250 V, 1 A

NO:: max. AC 250 V, 1 A

Housing

: plastic (PC/ABS)

Colour:: white (RAL 9003)

Degree of protection:: IP 20 (EN 60529)

Weight

: RT 01 D-BAT: 84 g

Compatibility

: RT 01 D-BAT: WB 01 D-8-230,
WB 01 D-8-24

Scope of delivery

RT 01 D-BAT with battery

Raumthermostat FloorControl RT 01 D-BAT
