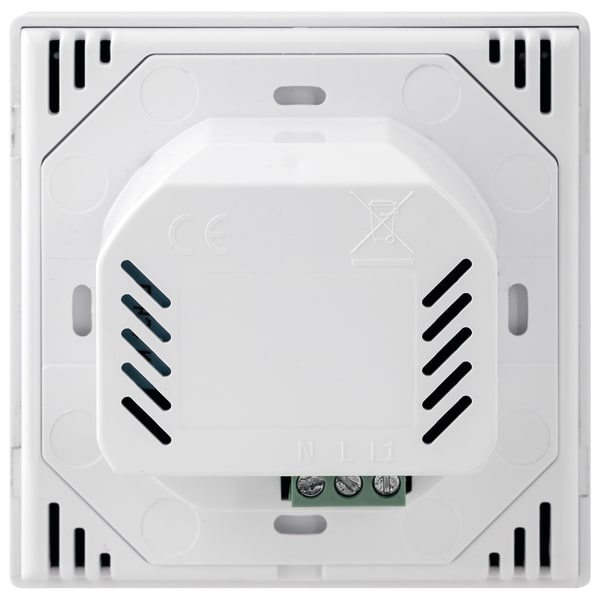

ERL_PRO_TEC_RUE_RAUMTHERMOSTAT_RT_01_D-230_86018.TIF
PRO_TEC_VOR_RAUMTHERMOSTAT_RT_01_D-BAT_86017_2.TIF
PRO_TEC_SAL_RAUMTHERMOSTAT_RT_01_D-BAT_86017.TIF
PRO_TEC_SAR_RAUMTHERMOSTAT_RT_01_D-BAT_86017.TIF
ERL_PRO_TEC_RUE_RAUMTHERMOSTAT_RT_01_D-230_86018.TIF
Images 4
Back

Raumthermostat RT 01 | 86018

Raumthermostat für Regelklemmleiste WB 01/WB 10 D

in-stock items
Documents

  • compact, modern design
  • easy surface mounting or mounting to standard in-wall switch boxes
  • either as 230 V or as battery version
  • suitable for heating and cooling

Determination of the actual ambient temperature and adjustment of the reference value for the room temperature. Can also be used for cooling (manual switching).

The room thermostat RT 01 is a part of the complete system FloorControl for single-room temperature control. Each room thermostat measures the actual ambient temperature and switches the output to obtain the required reference temperature. The reference value for the room temperature is adjusted by means of the keys. The integrated display shows the values. The actual temperature in rooms with an underfloor heating system is compared to the reference temperature on an ongoing basis.
Versions:
RT 01 D-BAT: Version with battery, suitable for wall mounting
RT 01 D-230: 230 V version, suitable for mounting to standard junction boxes/in-wall switch boxes

Operating temperature range
Ambient:
5/50 °C
Storage:
5/50 °C
Temperature adjustment range
5/35 °C
Accuracy:
± 0.5 K
Supply voltage
RT 01 D-230: AC 230 V
RT 01 D-230:
RT 01 D-230:   5.396 VA
Contact rating
NC:
max. AC 250 V, 1 A
NO:
max. AC 250 V, 1 A
Housing
plastic (PC/ABS)
Colour:
white (RAL 9003)
Degree of protection:
IP 20 (EN 60529)
Weight
RT 01 D-230:   105 g 
Compatibility
RT 01 D-230: WB 01 D-8-230
