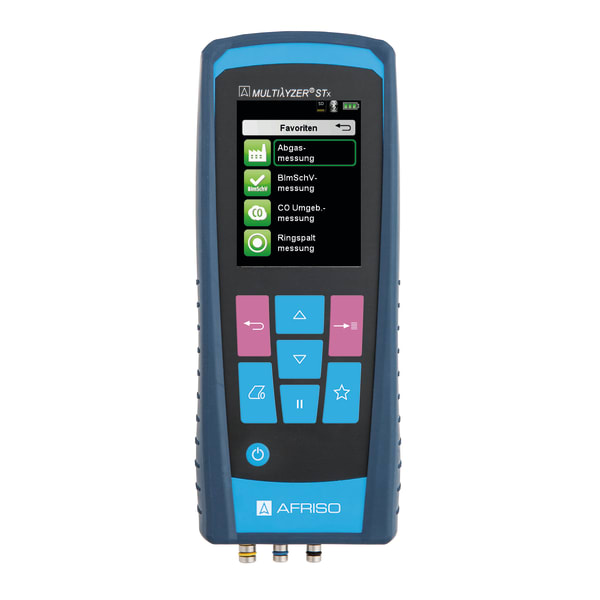

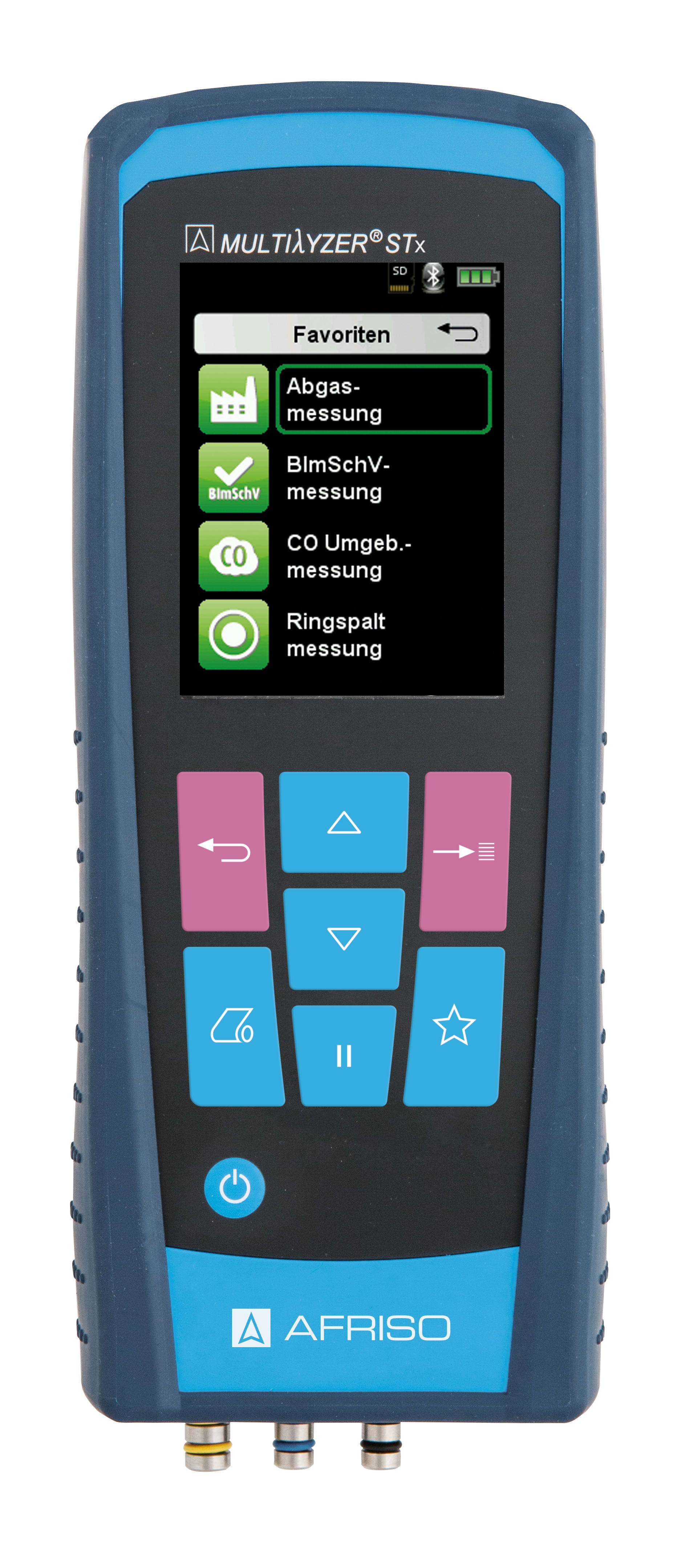

MULTILYZER STx - Set

Flue gas analyser

Variants Documents

  • All-in-one: Flue gas analysis, (differential) pressure measurement, (differential) temperature measurement, dust measurement, Pitot measurement (in conjunction with STM 225)
  • ECO sensor: Lead-free O2 sensor with long service life and optimised calibration phase, short response time, resistant to biogenous fuels
  • Can be equipped with a combination of up to six sensors: O2, CO/H2, NO, SO2, NO2 und COhigh
  • CO room air monitoring
  • qA mean value measurement as per 1st German Federal Immission Act BlmSchV
  • Quick-access function keys for direct data access
  • Measurement logs as QR code, database memory, customer data management
  • 5 years warranty on O2, CO/H2 sensors
  • 7 years full warranty in connection with a service contract
  • CAPBs®-enabled

Flue gas analyser for measuring small and medium-sized oil, gas and pellets fired heating systems according to the German Federal Immission Act and for CO concentration safety checks at gas fired systems. Ideal for servicing solid fuel systems (for example, coal or wood fired systems with temporary CO peaks) or bivalent, modulating combined heating and power plants. If used within the framework of dust measurements, MULTILYZER STx determines the flue gas value and serves as the central controller for the dust measuring instrument STM 225.

Einsatzmedien
Schnittstellen
Zulassungen

sensors / functionsPart no.
MULTILYZER STx Set 1O2, COH2, (differential) temperature, draft, differential pressureP04729210
MULTILYZER STx Set 2O2, COH2, NO, (differential) temperature, draft, differential pressureP04730210
MULTILYZER STx Set 3O2, COH2, CO40,000, (differential) temperature, draft, differential pressureP04741210
MULTILYZER STx Set 4O2, COH2, NO, CO40,000, (differential)temperature, draft, differential pressureP04748210
MULTILYZER STx Set 5O2, COH2, CO40,000, (differential) temperature, draft, differential pressure, module particulate matter measurementP04741217
  • in-stock items
  • manufactured goods

measuring ranges (measured values)
Flue gas temperature/differential temperature
0/1 150 °C
Air temperature/combustion air temperature
-20/+200 °C
Draft
-70/+70 hPa
Differential pressure
-150/+150 hPa
barometric pressure
500/1 150 hPa
Pitot
0.5/70 m/s
O2 measurement
0/21 Vol.-%
COH2 measurement
maximum:
0/10 000 ppm
additional technical specifications
Indication (calculated values)
CO2, COunverdünnt, Lambda, Eta-Wirkungsgrad, Flue gas losses qA, Taupunkt, temperature difference, CO mg/m3 (Erdgas), CO mg/kWh (fuel oil)
Operating temperature range
Ambient:
5/40 °C
Storage:
-20/+50 °C
weight (measuring instrument)
  631 g (depends on equipment with sensors)
Dimensions
W x H x D:
90 x 220 x 53 mm
Degree of protection
IP 42 (EN 60529)
Display
TFT colour display 3.5 "
W x H:
53 x 71 mm
240 x 320 pixels

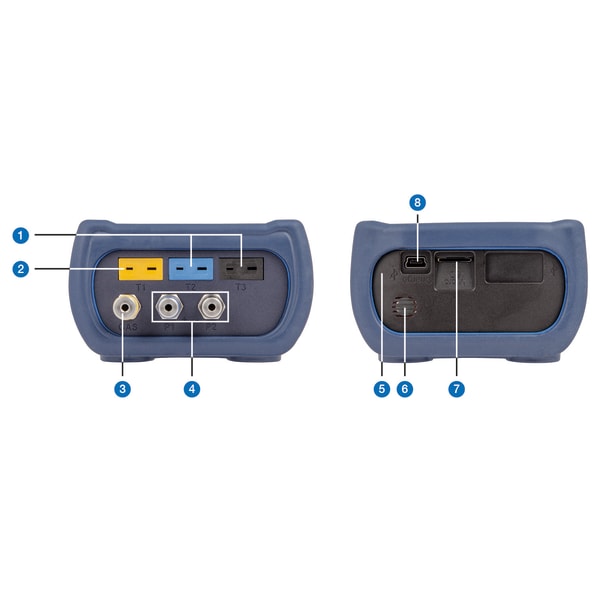

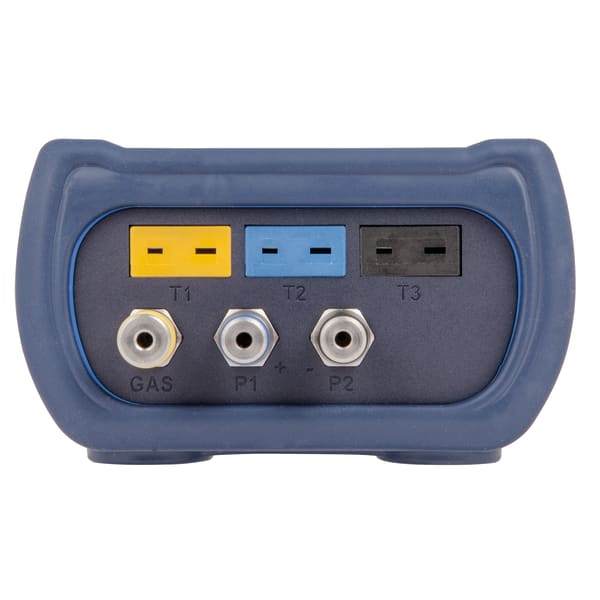

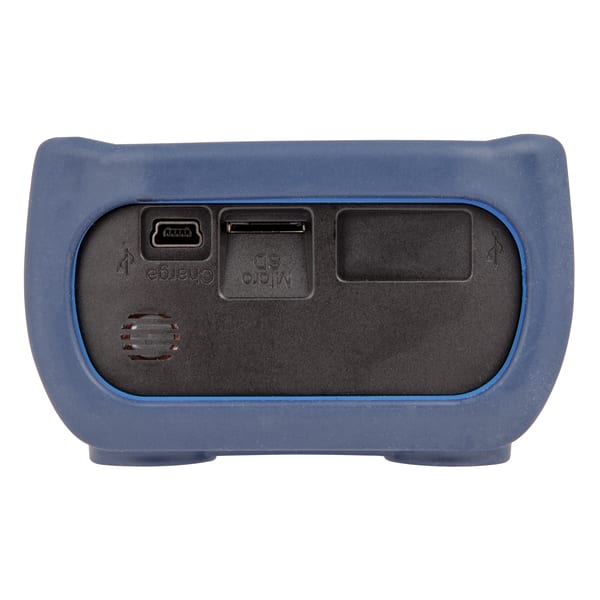

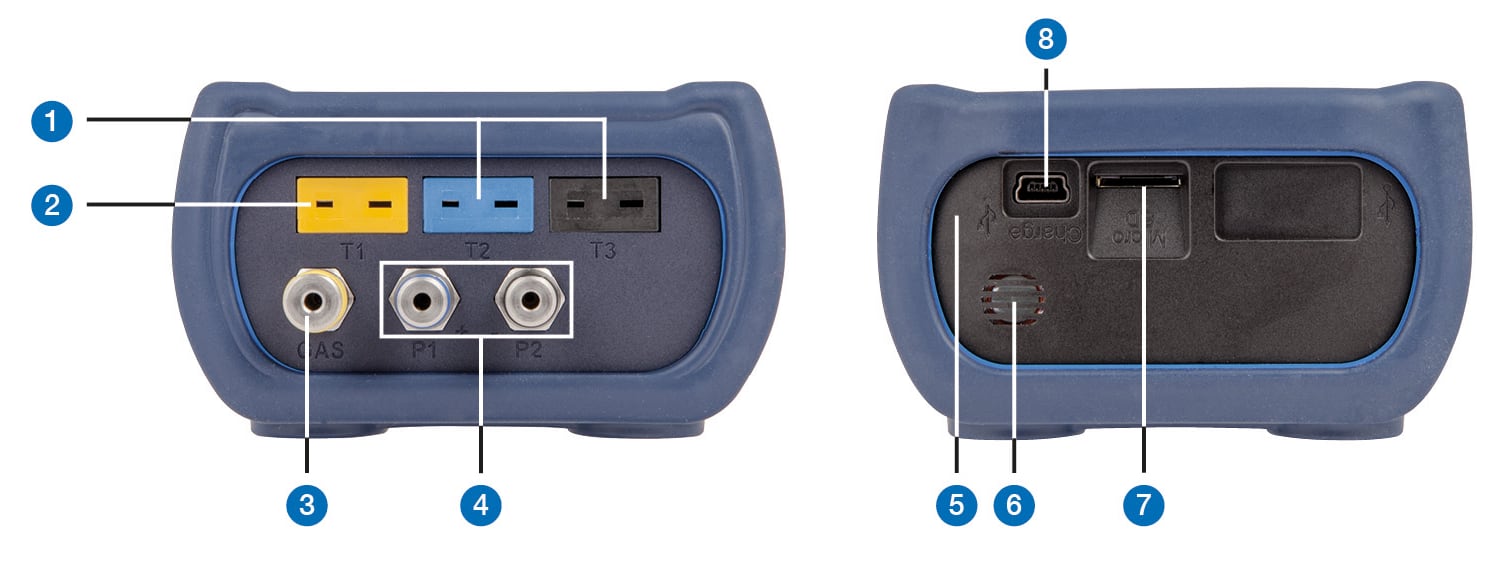

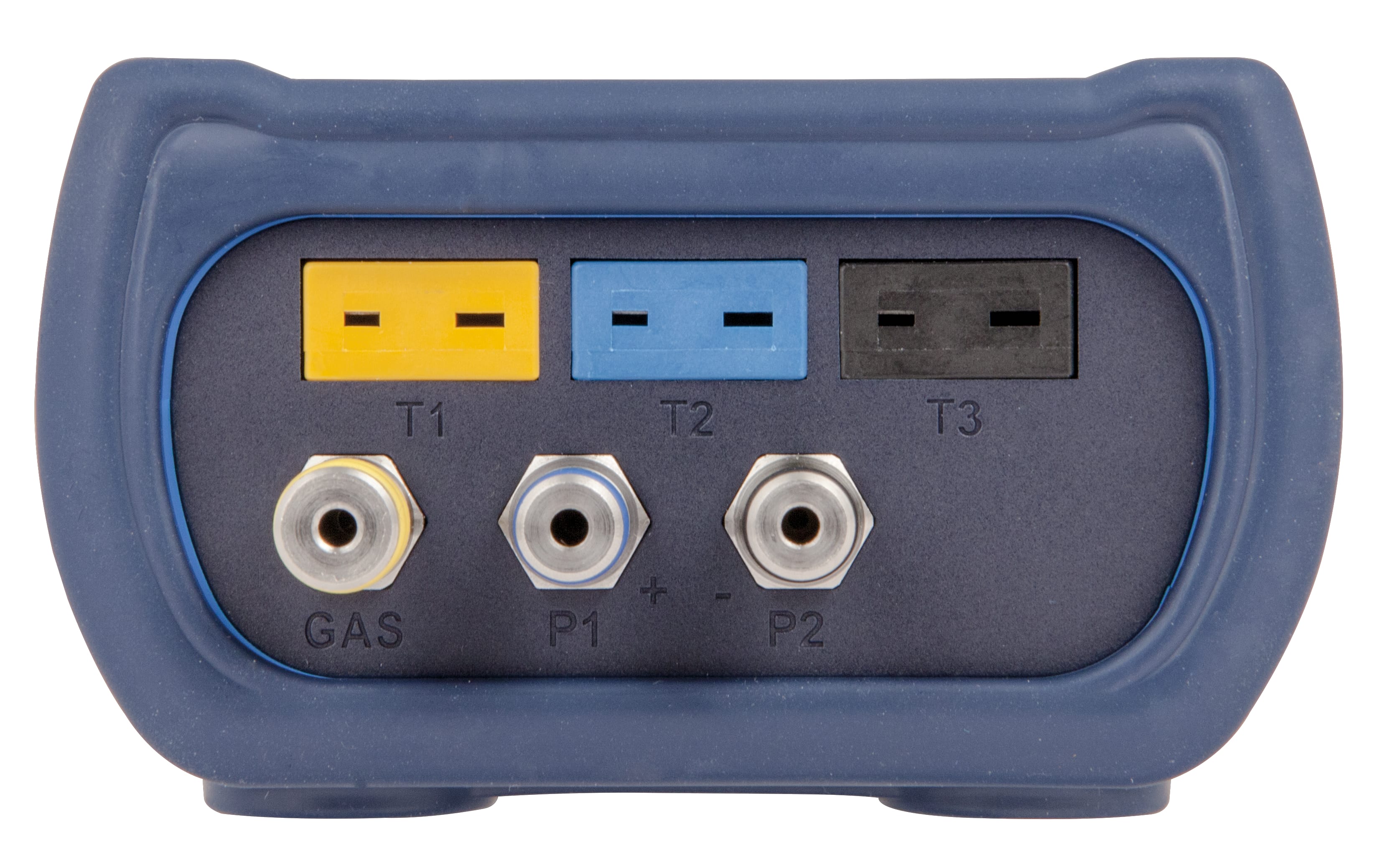

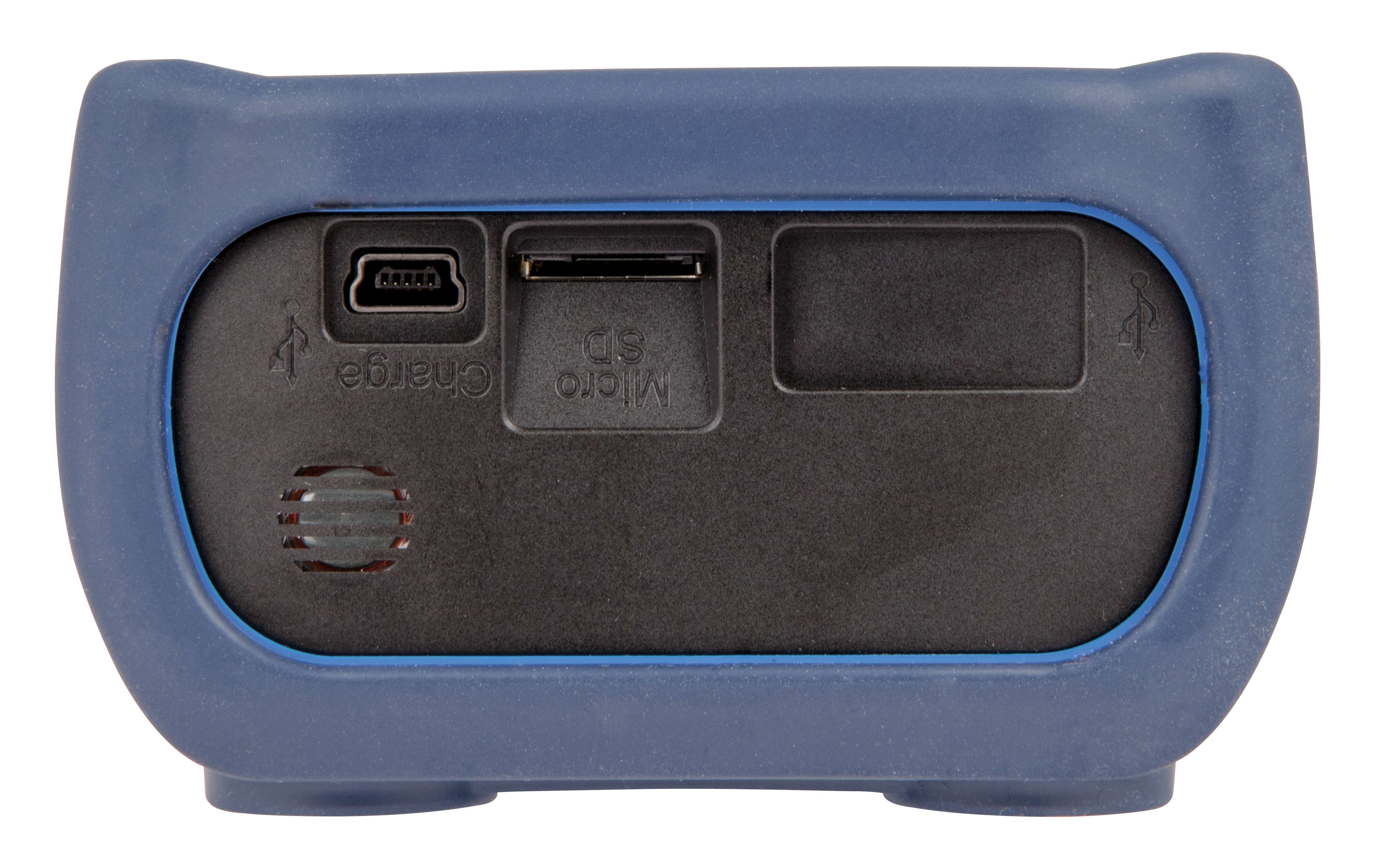

Connections
Draft/pressure:
∅ 7 mm
Gas:
∅ 8 mm
temperature:
socket type K
Supply voltage
lithium-ion battery (3.6 V/2900 mAh)
power supply unit (mini USB)
Battery or mains
Hours of operation
max. 12 Stunden
Data memory
microSD card, max. 32 GB
Data logger
1-999 seconds, interval freely selectable
Interfaces
Infrared,
Bluetooth®,
QR code generator,
MicroSD-Kartenslot
Approvals
1. BImSchV,
KÜO (TÜV ByRgG 301),
EN 50379-2
Scope of delivery
  • Measuring instrument
  • Kalibrierprotokoll
  • protective sleeve for device with magnets
  • Netzteil NTE 5 USB-A
  • Charging cable USB-A - mini USB
  • MicroSD-Karte inkl. USB 2.0 SD-Card-Reader
  • Base handle AWS-B for interchangeable probes 2.4 m condensate filter cartridge/draft
  • Wechselsonde AWS-S 300 mm
  • Condensate filter cartridge KFP
  • Infiltec-Feinfilter (5 Stück)
  • Teflon membrane (5 pieces)
  • Umgebungsluftfühler TFB-UL 50-1
  • connection kit ASS-DP
  • Gerätekoffer

Transport systems / cases / protective sleeve
Abb.
Bezeichnung

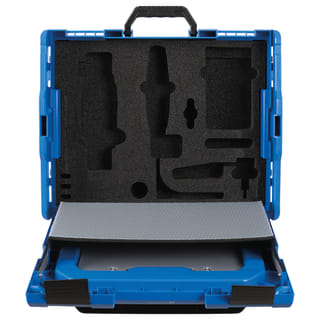

Kunststoff-Systemkoffer
Kunststoff-Systemkoffer | 500900
