Domestic technology Portable measuring instruments for service and maintenance Serie S2600
PRO_ECO_PRI_DRUCKMESSGERAET_S2600.TIF
PRO_ECO_PRI_DRUCKMESSGERAET_S2600.TIF
Images 1

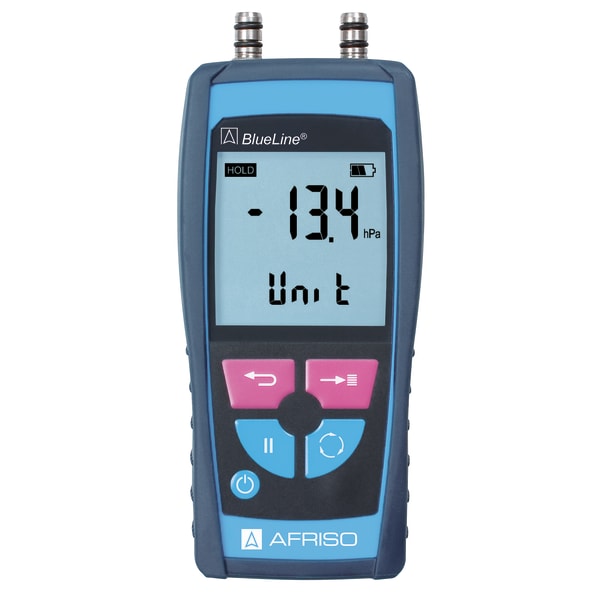

Serie S2600

pressure measuring instrument

Variants Documents

  • four (differential) pressure measurement ranges
  • measured values are displayed in 8 units: mbar, Pa, hPa, kPa, mmHg, inHg, psi, bar
  • automatic zero calibration
  • Hold function for short-term freezing of measured value
  • fully automatic device check, manual and automatic zero calibration during program start
  • Hose connection via 8 mm plug in connection or 3 mm Festo clamp connection

For measuring pressure, vacuum and differential pressure. For non-corrosive gaseous, dry media. Ideal for industrial, medical and air conditioning technology applications. Other typical application areas: Measurement of chimney draft, measurement of inlet pressure, flow pressure and nozzle pressure, pressure loss in flowing gases, filter inspection, ventilation systems or ducts, production and extraction facilities, vacuum measurement (laboratory), check of the connection pressure (natural gas supply pipes), burner pressure check, inspection of tanks for liquids (inlet and outlet pressure).

Zulassungen

Measuring rangePart no.
draft measuring instrument S2601(FZM 30)-20/+150 mbarP00092
pressure measuring instrument S2610(DMG 15)-50/+1 000 mbarP00093
pressure measuring instrument S2680-F(DMG 35)with Festo connection ⌀ 3 mm-100/+8 000 mbarP00095
  • in-stock items
  • manufactured goods

Operating temperature range
Ambient:
0/40 °C
Storage:
-20/+50 °C
Hours of operation (eco mode)
max. 100 Stunden
Weight
ca. 250 g ca.
Dimensions
W x H x D:
66 x 143 x 37 mm
Display
LCD, transflective
W x H:
46 x 48 mm
Supply voltage
2 x 1.5 V AA batteries
Approvals
1. BImSchV, EN 50379-2
Scope of delivery
  • measuring instrument with batteries
  • Kalibrierprotokoll
  • protective sleeve with magnet for device
