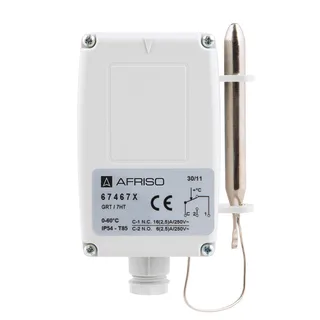

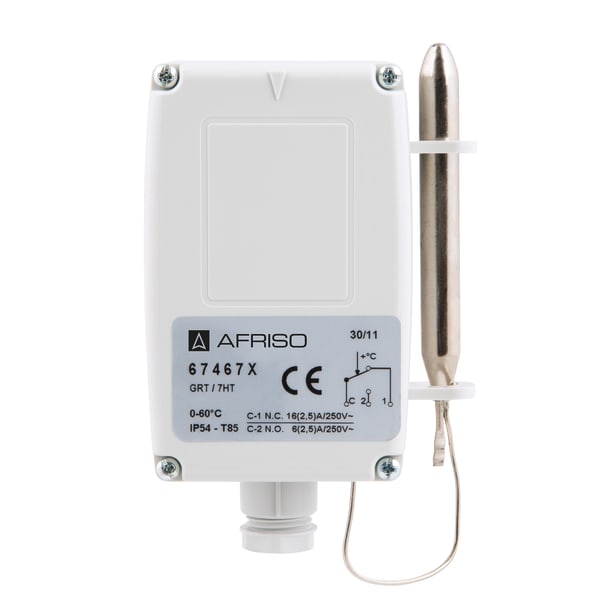

GRT/ETR | 67467X

room thermostat with housing

in-stock items

mechanical temperature controller
for monitoring of greenhouses
for use in animal breeding applications
easy wall mounting

Mechanical room thermostat for industrial use. Due to the high degree of protection, the device can be used in humid rooms and in animal breeding applications. The room thermostats are also suitable for temperature monitoring in greenhouses.

The temperature measured at the probe causes a change in the volume of the measuring liquid. Electrical switching is triggered by the force acting.

Type: GRT

Operating range

: see ordering table

Tolerance: ±0.4 %/10 K

Switching differential

: 0/55 °C: ∆T 3 ± 1 K

Setting

: GRT/ERT/ETR: Internal

Probe

: Copper, nickel-plated

Probe element

: liquid-filled

Operating temperature range

Housing:: max. 65 °C

Housing

: plastic (PVC), grey (RAL 7035)

Cable entry

: plastic (PVC), black

: M16 x 1.5

Degree of protection: IP 54 (EN 60529)

electrical switching contact: Changeover contact

Contact rating

NC:: AC 250 V, 16 (2.5) A

NO:: AC 250 V, 6 (2.5) A
