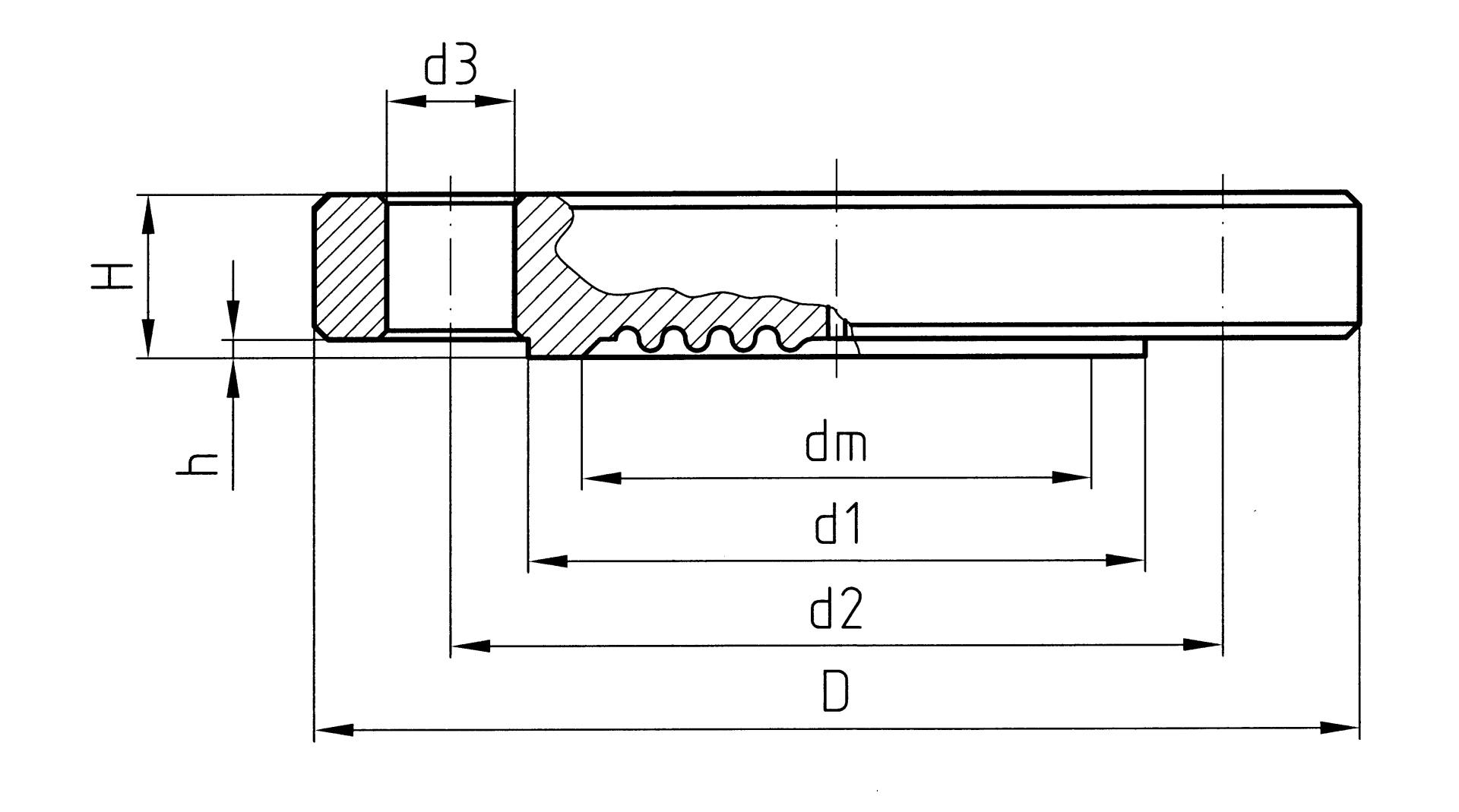

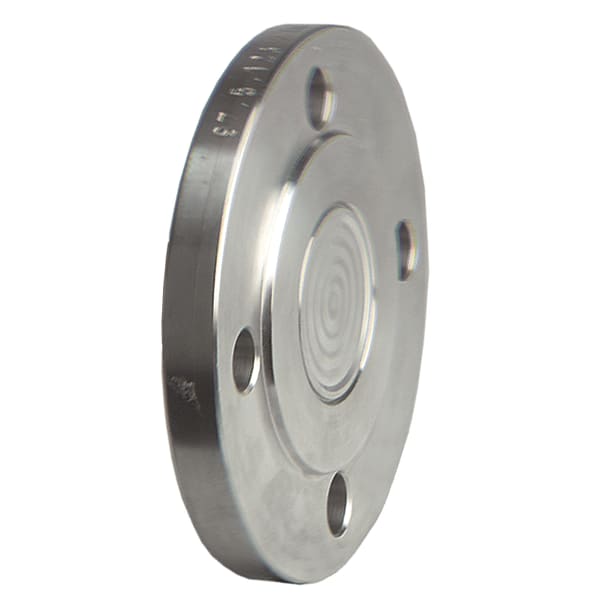

Images 2 MD 80 Membrandruckmittler Flanschausführung Variants Documents Benefits flush, welded diaphragmfor DIN and ASME flange connectionsnumerous special materials and coatings (option)with bottom instrument connection as cell design (option) Application For mounting to Bourdon tube pressure gauges, pressure transducers or pressure switches. For corrosive, highly viscous, polluted, crystallising or hot media. Typical application areas:Chemical IndustryPetrochemistryRefineriesPower plant engineering Variants Technical data Technical drawings Downloads Variants process connection, standardProcess connectionInstrument connectionNominal diameterNominal pressureminimum range* (in bar) at nominal sizePart no.63100160DMUDMU 13 Varioflange connection as per ASME B 16.5 (Raised Face)1"Welded connectionCL 1504 bar4 bar1 bar31393Wflange connection as per ASME B 16.5 (Raised Face)1"Welded connectionCL 3004 bar4 bar1 bar31394Wflange connection as per ASME B 16.5 (Raised Face)1½"Welded connectionCL 1504 bar4 bar4 bar1 bar1 bar31396Wflange connection as per ASME B 16.5 (Raised Face)1½"Welded connectionCL 3004 bar4 bar4 bar1 bar1 bar31397Wflange connection as per ASME B 16.5 (Raised Face)2"Welded connectionCL 1500.6 bar0.6 bar0.6 bar0.6 bar0.6 bar31399Wflange connection as per ASME B 16.5 (Raised Face)2"Welded connectionCL 3000.6 bar0.6 bar0.6 bar0.6 bar0.6 bar31400Wflange connection as per ASME B 16.5 (Raised Face)3"Welded connectionCL 1500.6 bar0.6 bar0.6 bar0.6 bar0.6 bar31402Wflange connection as per ASME B 16.5 (Raised Face)3"Welded connectionCL 3000.6 bar0.6 bar0.6 bar0.6 bar0.6 bar31403Wflange connection as per ASME B 16.5 (Raised Face)4"Welded connectionCL 1500.6 bar0.6 bar0.6 bar0.6 bar0.6 bar31405Wflange connection as per ASME B 16.5 (Raised Face)4"Welded connectionCL 3000.6 bar0.6 bar0.6 bar0.6 bar0.6 bar31406W in-stock items manufactured goods Technical data Process connection/tubusStainless steel 316 Lflange connection as per ASME B 16.5 (Raised Face)diaphragmStainless steel 316 LInstrument connectionWelded connectionpressure transmission liquidParaffin oil (FM 09), FDA-listedpressure rangesee overview of versionsNominal pressureCL 150 Technical drawings Click the corresponding image for detail views, additional information and dimension tables. Type MD 80 - flange connection as per ASME B 16.5 (Raised Face) DNCLDd1d2d3Hhdm1"15010850,879,44x15,914,31,628300123,950,888,94x19,117,51,6281½"15012773,298,64x15,917,51,636300155,673,2114,34x22,422,41,6362"150152,492,1120,74x19,119,11,648300165,192,11278x19,125,41,6483"150190,5127152,44x19,123,91,648300209,6127168,38x22,431,81,6484"150228,6157,2190,58x19,123,91,648300254157,2200,18x22,331,71,648 Downloads Membrandruckmittler MD 80/MD 81 Industrial technology PDF English German Druckmittler PDF Italian English German
