Sludge separator

AFRISO Schlammabscheider  G1 1/2 VOR 90420 object_image_56164_en AFRISO Schlammabscheider  G1 1/2 VOR 90420 object_image_56164_en
Schlammabscheider G1 1/2
AFRISO Schlammabscheider  G1 1/2 VOR 90420 object_image_56164_en
AFRISO Reduzierverschraubungs-Set G3/4 IG VOR 91750 91760 AFRISO Reduzierverschraubungs-Set G3/4 IG VOR 91750 91760
Reduzierverschraubungs-Set G3/4 IG
AFRISO Reduzierverschraubungs-Set G3/4 IG VOR 91750 91760
AFRISO Schlammabscheider  G1 1/2 ILL 90420 AFRISO Schlammabscheider  G1 1/2 ILL 90420
Schlammabscheider G1 1/2
AFRISO Schlammabscheider  G1 1/2 ILL 90420
AFRISO Schlammabscheider  G1 1/2 BEF 90420 AFRISO Schlammabscheider  G1 1/2 BEF 90420
Schlammabscheider G1 1/2
AFRISO Schlammabscheider  G1 1/2 BEF 90420
AFRISO Schlammabscheider  G1 1/2 VOR 90420 object_image_56164_en
AFRISO Reduzierverschraubungs-Set G3/4 IG VOR 91750 91760
AFRISO Schlammabscheider  G1 1/2 ILL 90420
AFRISO Schlammabscheider  G1 1/2 BEF 90420
Data sheet sludge separator
Afriso Data sheet sludge separator

Versions

Part no. Remember
Sludge separator G1½ 40683
Reducer union kit G¾i 40685
Reducer union kit G1i 40684

Blue part no. = in-stock items

Description Format Language Download / Link
Data sheet sludge separator Data sheet PDF
Afriso Data sheet sludge separator
Sludge separator Operating instructions PDF
Afriso Sludge separator

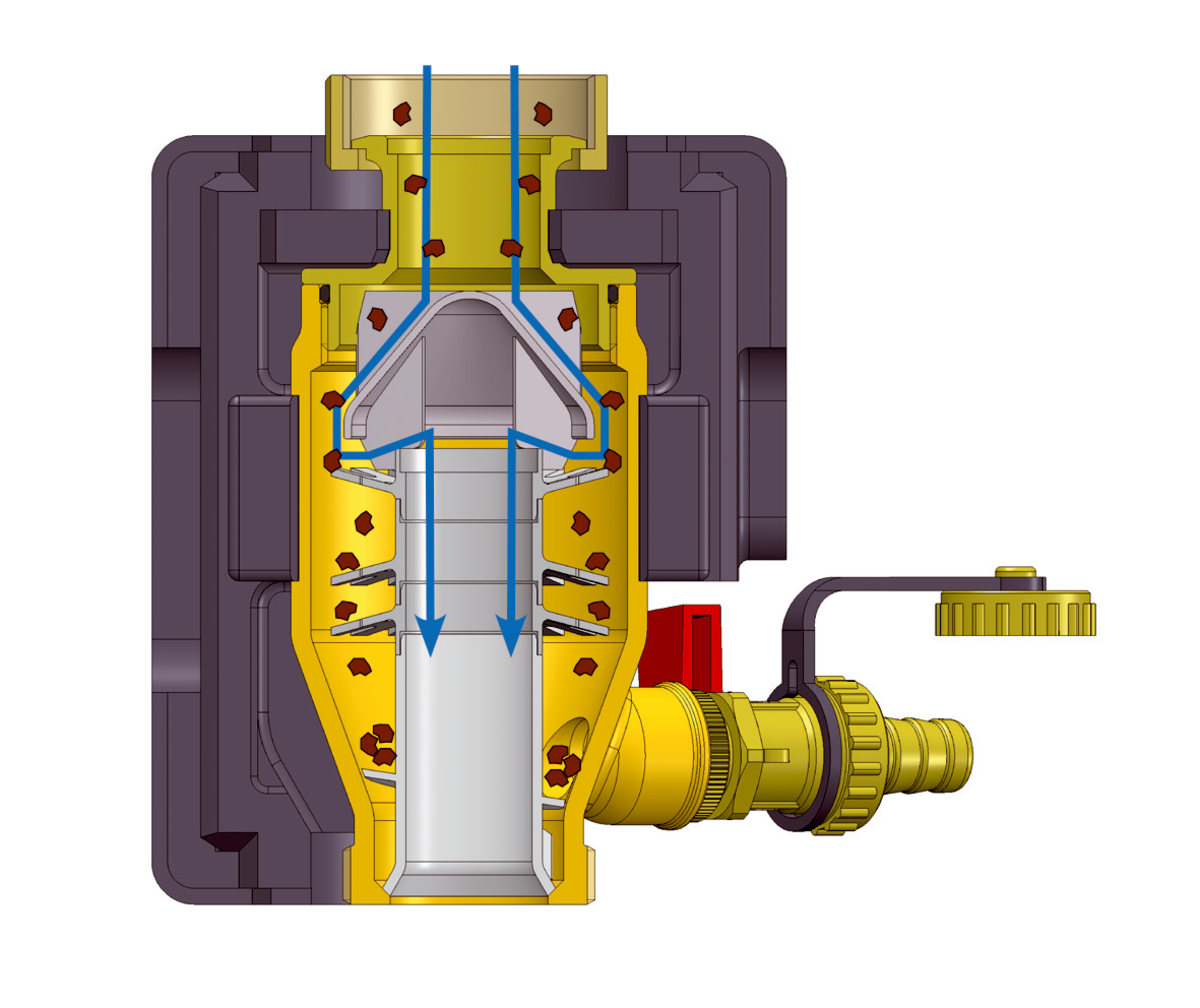

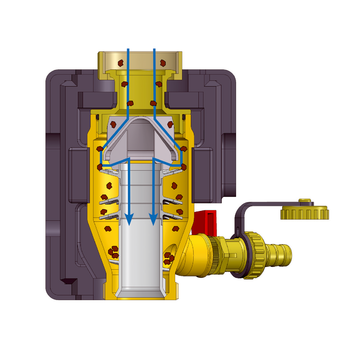

Compact sludge separator with drain valve in form-fit insulation. The highly efficient concept removes sludge from the water. Plates in the separator deflect the particles into a separate area. From there, the dirt particles can be flushed out during normal operation by means of a valve. The sludge separator can be combined with the air separator and can be installed in the flow (preferred) or return lines. Reducer unions G1 female and G¾ female are available for renovation or retrofitting in existing pipes.
Housing
Brass
Insulation
Polypropylene EPP
Operating pressure
Max. 10 bar
Flow coefficient Kvs
13.6 m<sup>3</sup>/h (flow top down)
14.7 m<sup>3</sup>/h (flow bottom up)
Operating temperature range
Medium:
Max. 95 °C
Connections
Top:
G1½ female (union nut)
Bottom:
G1½ male
Mounting position
Vertical
