Solar pump assembly PrimoSol® 130-4

AFRISO Solarpumpengruppe PrimoSol 130-4 2-12 l/min VOR 106300 106310 106320 object_image_56248imagemain_en AFRISO Solarpumpengruppe PrimoSol 130-4 2-12 l/min VOR 106300 106310 106320 object_image_56248imagemain_en
Solarpumpengruppe PrimoSol 130-4 2-12 l/min
AFRISO Solarpumpengruppe PrimoSol 130-4 2-12 l/min VOR 106300 106310 106320 object_image_56248imagemain_en
AFRISO Solarpumpenstrang PrimoSol 130-1 ANW 106280 106300 106310 106320 AFRISO Solarpumpenstrang PrimoSol 130-1 ANW 106280 106300 106310 106320
Solarpumpenstrang PrimoSol 130-1
AFRISO Solarpumpenstrang PrimoSol 130-1 ANW 106280 106300 106310 106320 <div class="gallery-information"> <b>Legend:</b> <ol> <li>Solar pump assembly PrimoSol<sup>®</sup> 130-4</li> <li>Collector tank for solar liquid</li> <li>Air separator combination Solar LKS</li> </ol> </div>
AFRISO Solarpumpengruppe PrimoSol 130-4 2-12 l/min BEF 106300 106310 106320 AFRISO Solarpumpengruppe PrimoSol 130-4 2-12 l/min BEF 106300 106310 106320
Solarpumpengruppe PrimoSol 130-4 2-12 l/min
AFRISO Solarpumpengruppe PrimoSol 130-4 2-12 l/min BEF 106300 106310 106320 <div class="gallery-information"> <p> <strong>Solar pump assembly PrimoSol<sup>®</sup> 130-4</strong> </p> <p>Dimensions (in mm)</p> <b>Legend:</b> <ol> <li>Flow meter with ball valve as well as filling and flushing unit</li> <li>Safety group assembly</li> <li>Combination valve with thermometer (return/cold)</li> <li>Combination valve with thermometer (flow)</li> <li>Vent pot for fast and easy venting, especially during filling of the system</li> </ol> </div>
AFRISO Solarpumpengruppe PrimoSol 130-4 2-12 l/min VOR 106300 106310 106320 object_image_56248imagemain_en
 VOR 106310
AFRISO Solarpumpenstrang PrimoSol 130-1 ANW 106280 106300 106310 106320
AFRISO Solarpumpengruppe PrimoSol 130-4 2-12 l/min BEF 106300 106310 106320
Data sheet Solar pump assembly PrimoSol® 130-4
AFRISO Data sheet Solar pump assembly PrimoSol® 130-4

Versions

Part no. Remember
Solar pump assembly PrimoSol® 130-4 2–12 l/min, with Grundfos UPM 3 Solar 25–75 77889
Solar pump assembly PrimoSol® 130-4 2–12 l/min, without circulation pump 77859
Solar pump assembly PrimoSol® 130-4 8–38 l/min, with Grundfos UPM 3 Solar 25–75 77018

Blue part no. = in-stock items

Description Format Language Download / Link
Data sheet Solar pump assembly PrimoSol® 130-4 Data sheet PDF
AFRISO Data sheet Solar pump assembly PrimoSol® 130-4
Solar pump assembly PrimoSol 130 Operating instructions PDF
AFRISO Solar pump assembly PrimoSol 130
Diaphragm safety valve MS MSW MSS Declaration of Conformity PDF
AFRISO Diaphragm safety valve MS MSW MSS

Complete, pre-assembled and tightness-tested solar pump assembly/line with all required safety and functional components, including form-fit heat insulation.

Depending on the version, the return line (return/cold) consists of:

Circulation pump

Flow meter with ball valve for shut-off, pump end with flange and union nut G1½. Measuring range: 2–12 l/min. With integrated filling and flushing unit, system connection: G¾ male thread.

Combination valve with system connection G3/4 male thread, pump end with flange and union nut G1½. With adjustable gravity brake and thermometer in the hand wheel (blue mark, range 0/120 °C).

Safety group assembly with connection G¾ for expansion vessel. With solar safety valve 6 bar, outlet Rp¾ female thread, pressure gauge Ø 63 mm, 0/10 bar, mounting valve.

The flow line consists of (130-4 only):

Combination valve with adjustable gravity brake and thermometer in the handle (red mark, range 0/120 °C) with system connection G3/4 male thread

Vent pot to remove the gas from the heat transfer fluid with system connection G¾ male. Transparent hose 200 mm as venting aid.

The heat insulation is also used to package the product for protected transport. The safety valve of the safety group assembly complies with Pressure Equipment Directive 2014/68/EC.

Axis distance
100 mm
System connections
G¾ male
Operating temperature range
Ambient:
Max. 40 °C
Medium:
Max. 120 °C
short-term 160 °C
System pressure
Max. 6 bar
Flow meter
2 – 12 l/min
8 – 38 l/min
Insulation
Polypropylene EPP
Circulation pump
Grundfos UPM 3 Solar 25-75, Without circulation pump
Length:
130 mm
Degree of protection:
IP 42 (EN 60529)
Supply voltage
AC 230 V, 50 Hz
Power input/pumping head
19 W/4.5 m
28 W/5.5 m
35 W/6.5 m
45 W/7.5 m
Solar pump assembly PrimoSol® 130-4
Solar pump assembly PrimoSol® 130-4
AFRISO

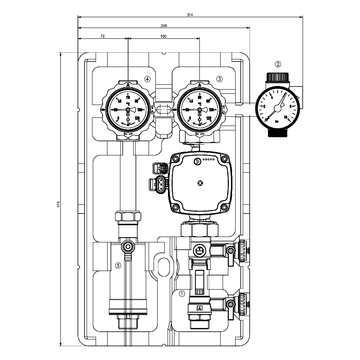

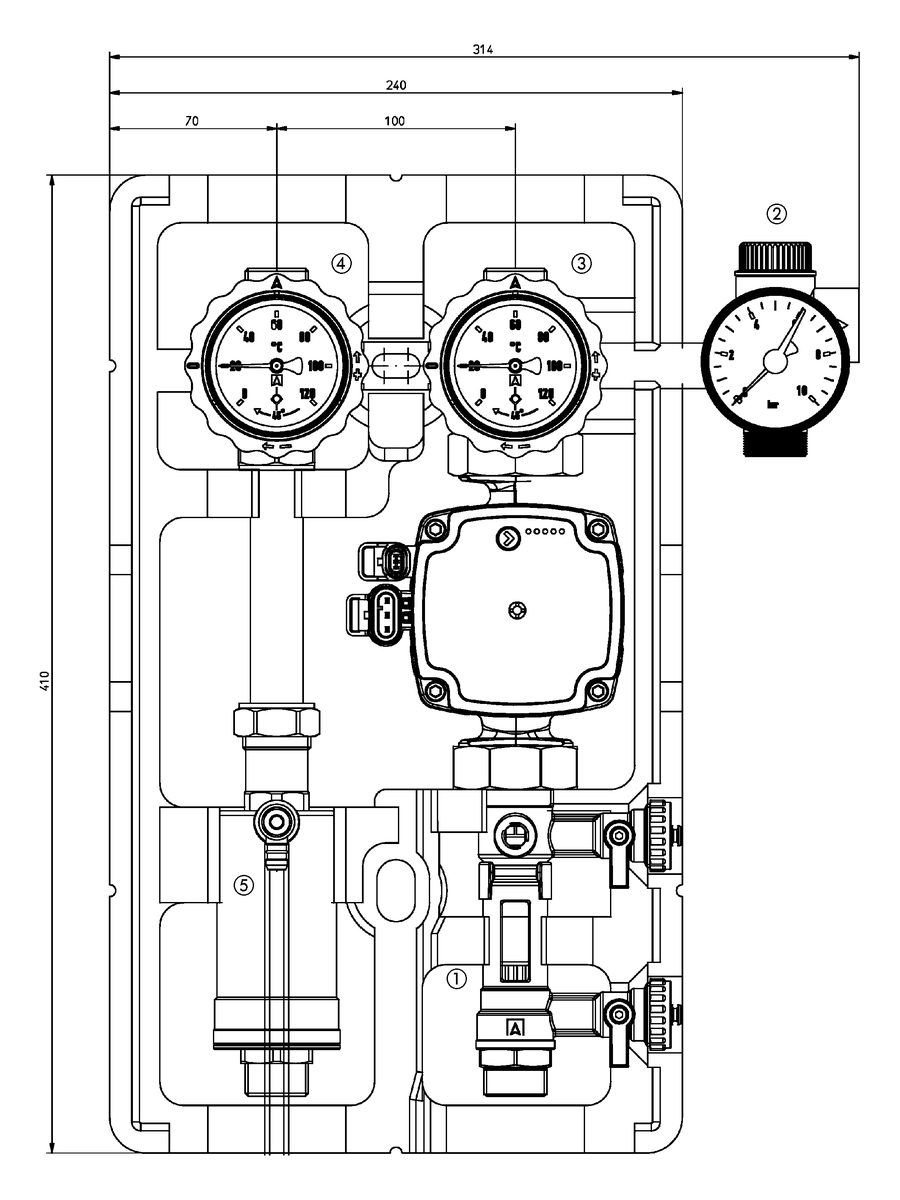

Dimensions (in mm)
  1. Flow meter with ball valve as well as filling and flushing unit
  2. Safety group assembly
  3. Combination valve with thermometer (return/cold)
  4. Combination valve with thermometer (flow)
  5. Vent pot for fast and easy venting, especially during filling of the system
