CAPBs® set tightness test underfloor heating system PT 70-FBH

AFRISO CAPBs Set Dichtheitsprüfung Fußbodenheizung PT 70-FBH 3040 object_image_88017imagemain_en AFRISO CAPBs Set Dichtheitsprüfung Fußbodenheizung PT 70-FBH 3040 object_image_88017imagemain_en
CAPBs Set Dichtheitsprüfung Fußbodenheizung PT 70-FBH
AFRISO CAPBs Set Dichtheitsprüfung Fußbodenheizung PT 70-FBH 3040 object_image_88017imagemain_en
AFRISO CAPBs Set Dichtheitsprüfung Fußbodenheizung PT 70-FBH 3040 object_image_88017imagemain_en
AFRISO CAPBs Basisgriff BG 10 VOR 2390 AFRISO CAPBs Basisgriff BG 10 VOR 2390
CAPBs Basisgriff BG 10
AFRISO CAPBs Basisgriff BG 10 VOR 2390
AFRISO CAPBs Basisgriff BG 10 DRA 2390 AFRISO CAPBs Basisgriff BG 10 DRA 2390
CAPBs Basisgriff BG 10
AFRISO CAPBs Basisgriff BG 10 DRA 2390
AFRISO CAPBs Basisgriff BG 10 RUE 2390 AFRISO CAPBs Basisgriff BG 10 RUE 2390
CAPBs Basisgriff BG 10
AFRISO CAPBs Basisgriff BG 10 RUE 2390
AFRISO CAPBs Basisgriff BG 10 ANW 2390 AFRISO CAPBs Basisgriff BG 10 ANW 2390
CAPBs Basisgriff BG 10
AFRISO CAPBs Basisgriff BG 10 ANW 2390
AFRISO CAPBs Set Dichtheitsprüfung Fußbodenheizung PT 70-FBH 3040 object_image_88017imagemain_en
AFRISO CAPBs Basisgriff BG 10 VOR 2390
AFRISO CAPBs Basisgriff BG 10 DRA 2390
AFRISO CAPBs Basisgriff BG 10 RUE 2390
AFRISO CAPBs Basisgriff BG 10 ANW 2390
Data sheet CAPBs® set tightness test underfloor heating system PT 70-FBH
AFRISO Data sheet CAPBs® set tightness test underfloor heating system PT 70-FBH

Benefits

  • Set for pressure tests as per BTGA und DIN EN 1264-4 of underfloor systems for heating and cooling
  • Test media water or air
  • Test adapter (G¾ female) for direct connection to the manifold system
  • Standardised quick-action coupling system for easy test setup
  • Can be modularly extended for DPK 60 sens series
  • Pressure transmitter PT 70 (0/25 bar)
  • Easy test and PDF documentation via applet "Tightness test" in the EuroSoft® live app

Application

  • Tightness tests at underfloor systems for heating and cooling
  • For liquid, gaseous and corrosive media

Versions

Part no. Remember
CAPBs® set tightness test underfloor heating system PT 70-FBH P00040
Base handle CAPBs® module BG 10 M091000017

Blue part no. = in-stock items

Description Format Language Download / Link
Data sheet CAPBs® set tightness test underfloor heating system PT 70-FBH Data sheet PDF
AFRISO Data sheet CAPBs® set tightness test underfloor heating system PT 70-FBH

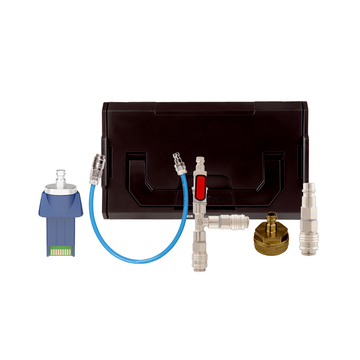

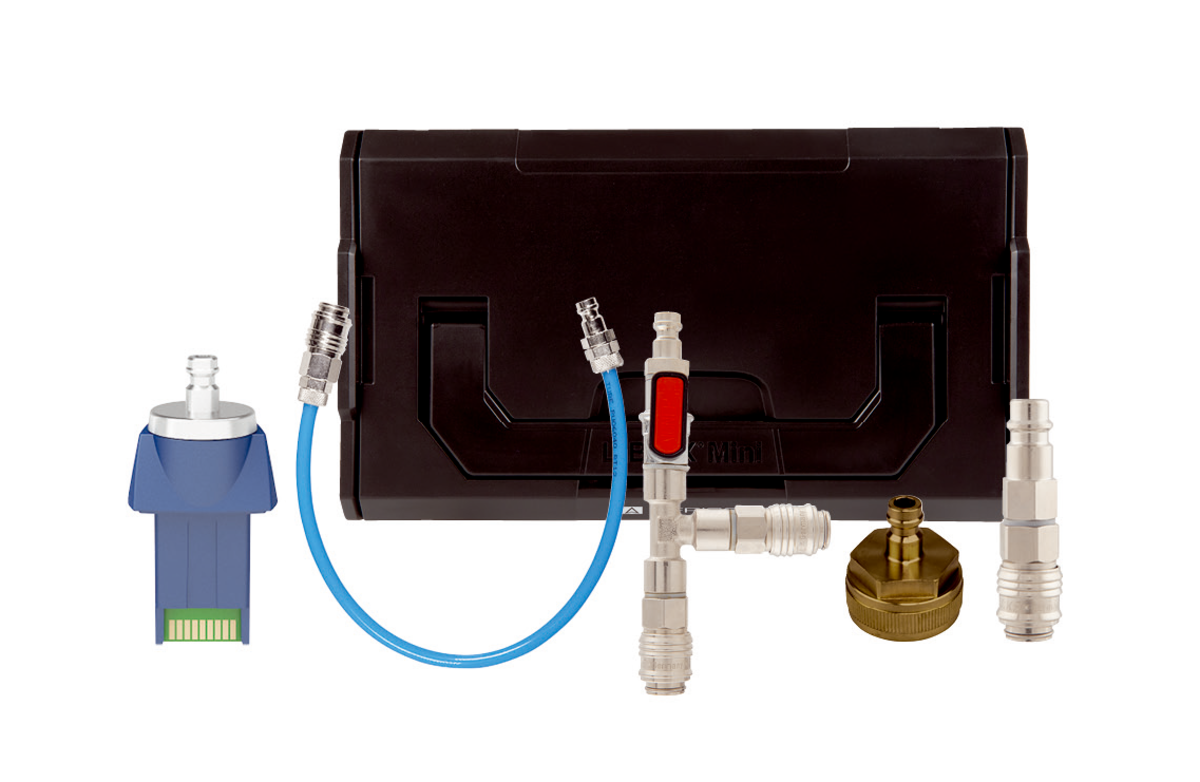

Ready-to-be-used set in system case S pressure transmitter PT 70 (25 bar), connection accessories and suitable test adapter (connection cap) for direct connection to the manifold system. Flexible, uncomplicated connection to the pipe sections to be tested by means of standardised quick-action coupling system.
Dimensions (W x H x D)
Sensor module:
42 x 74 x 35 mm
Case:
260 x 63 x 155 mm
Interface
Bluetooth<sup>®</sup>
Hours of operation
Bis 32 Stunden
Battery operation with CAPBs<sup>®</sup> BG 10
Measuring range
0/25 bar
Hose connection
1 x Plug connector DN 5
Scope of delivery
  • Drucktransmitter CAPBs<sup>®</sup> sens PT 70, 0/25 bar
  • Test adapter G¾ female with plug-in nipple DN 5
  • Adapter for compressor connection
  • Connection hose 0.3 m
  • T connector (2 x quick-action coupling / 1 x shut-off valve with plug-in nipple DN 5)
  • System case S
  • CAPBs<sup>®</sup> base handle BG 10
  • 2 x 1.5 V AAA alkaline battery
