EDS 10 A

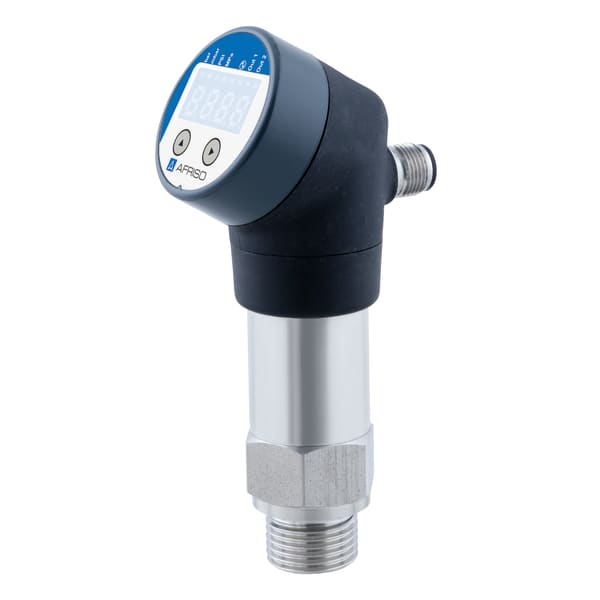

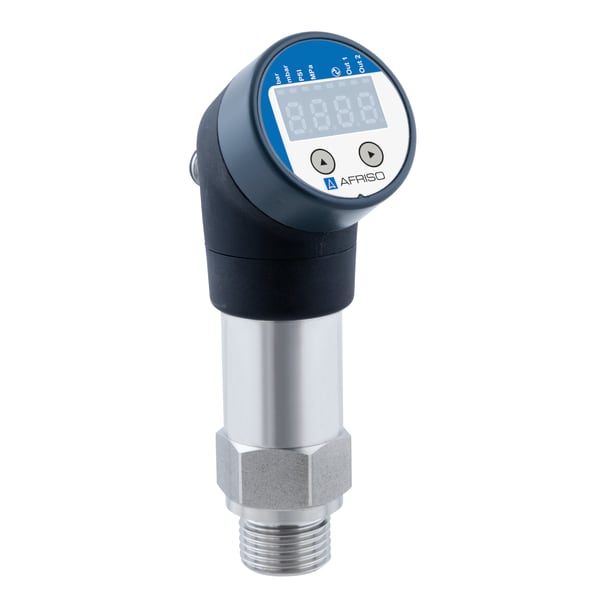

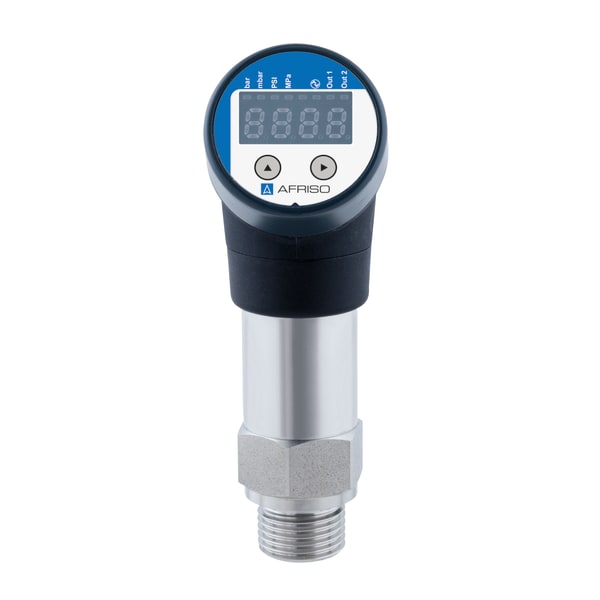

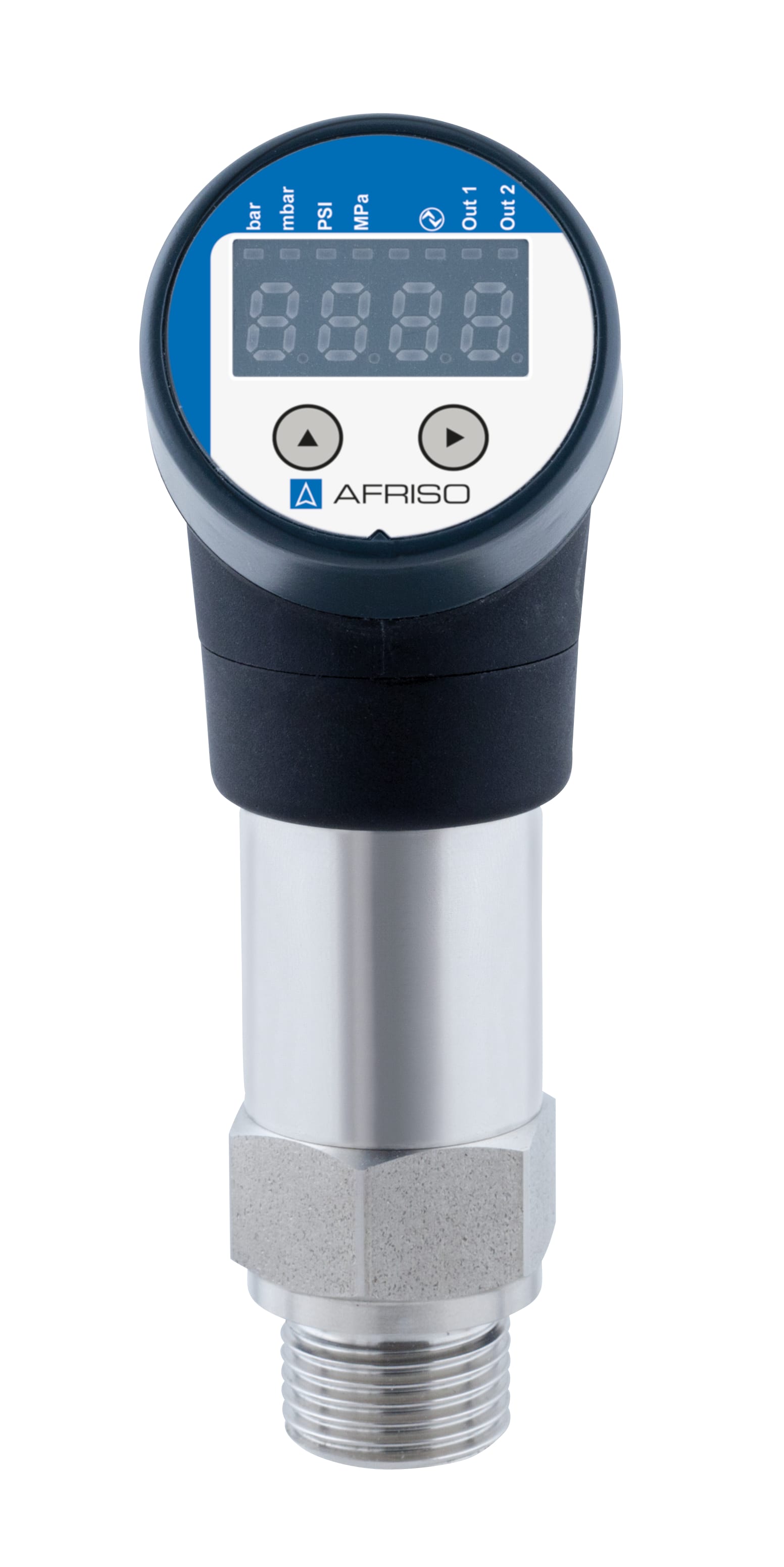

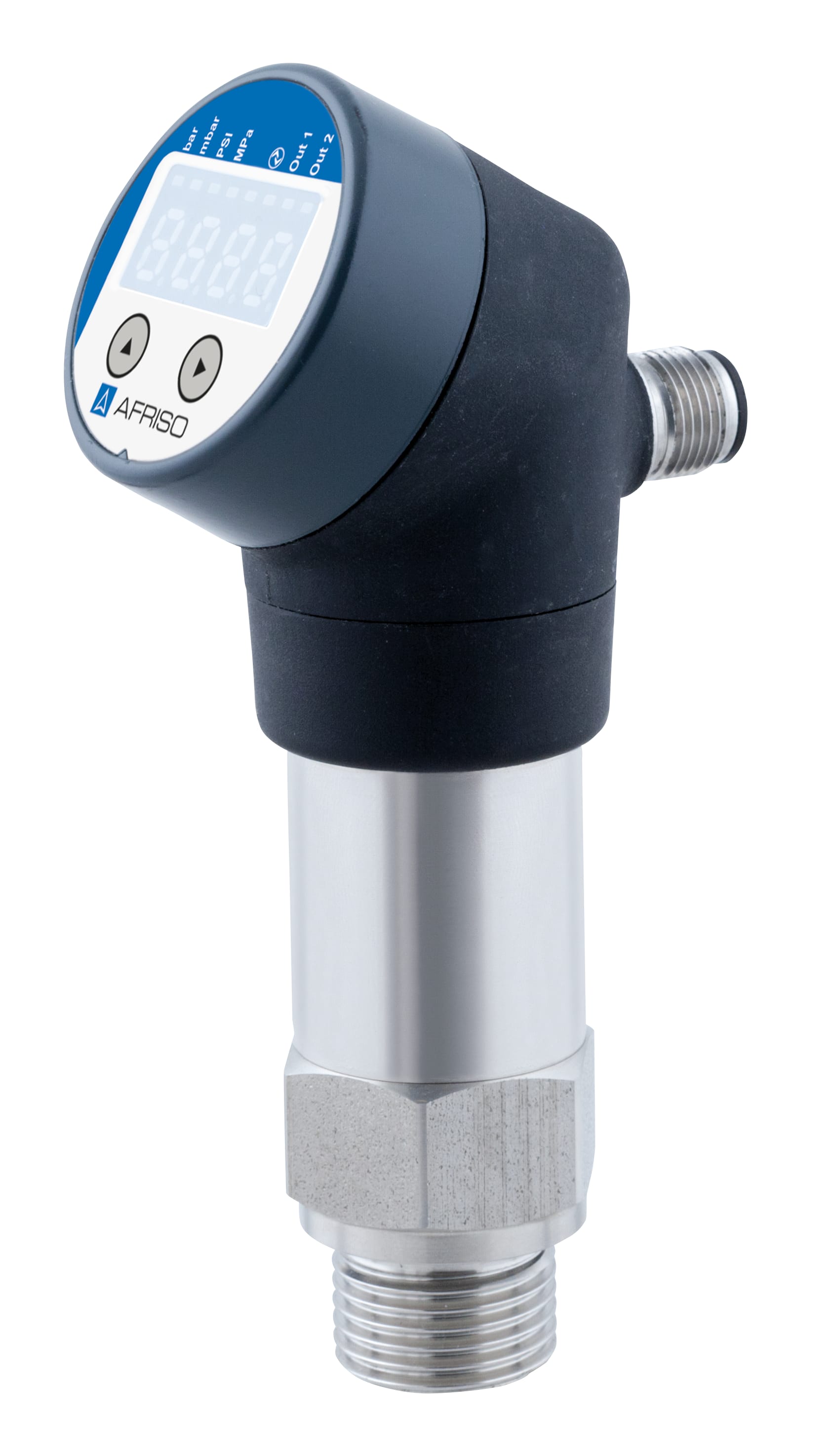

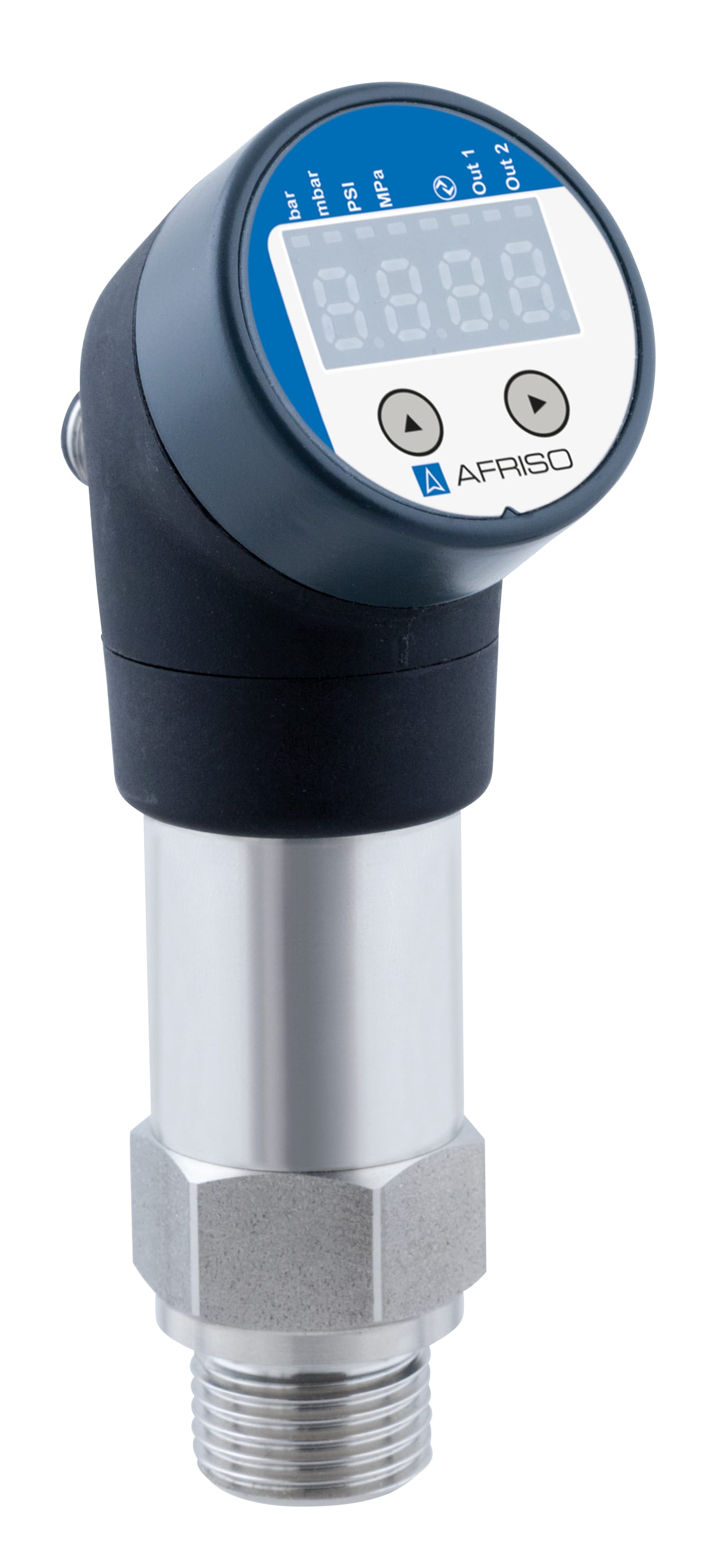

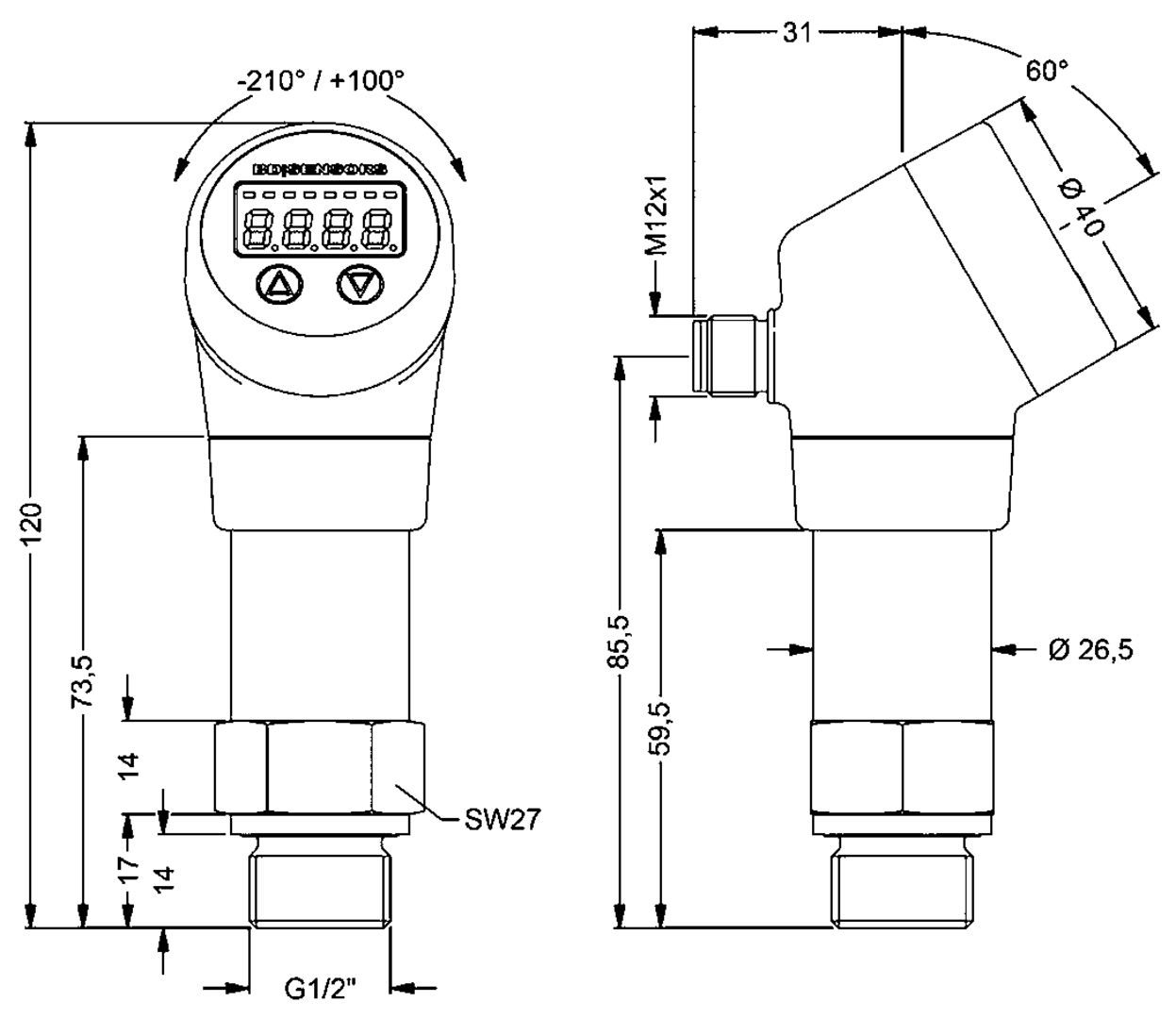

electronic pressure switch

Variants Documents

  • 4-digit LED display
  • Display can be rotated and tilted to any position
  • 2 PNP switching outputs
  • accuracy ≤ ± 0.35 % at 400 mbar and higher
  • measuring range selection from 100 mbar to 600 bar

Main application areas comprise monitoring of gaseous or liquid media in plant and mechanical engineering. The pressure switch lends itself to pneumatic or hydraulic systems requiring high switching accuracy. The display can be rotated and tilted to practically any position so that the device can be used under adverse mounting conditions.

The device uses a piezo-resistive stainless steel measuring cell. The 4-digit LED display of the pressure switch EDS 10 can be rotated by 330° and tilted by 300°. The switching points (switching hysteresis) are via the menu and two keys. The status of the switching outputs is indicated by an LED each. At a nominal pressure of ≥1, the pressure switch is vacuum-tight without limitations.

Pressure typePressure typeMeasuring rangePart no.
Pressure switches EDS 10absolute pressure0/0.4 bar33405A01010011
Pressure switches EDS 10absolute pressure0/0.6 bar33405A01108011
Pressure switches EDS 10absolute pressure0/1 bar33405A01109011
Pressure switches EDS 10absolute pressure0/1.6 bar33405A01110011
Pressure switches EDS 10absolute pressure0/2.5 bar33405A01111011
Pressure switches EDS 10absolute pressure0/4 bar33405A01112011
Pressure switches EDS 10absolute pressure0/6 bar33405A01113011
Pressure switches EDS 10absolute pressure0/10 bar33405A01114011
Pressure switches EDS 10absolute pressure0/16 bar33405A01115011
Pressure switches EDS 10absolute pressure0/25 bar33405A01116011
Pressure switches EDS 10absolute pressure0/40 bar33405A01117011
Pressure switches EDS 10absolute pressure0/60 bar33405A01118011
Pressure switches EDS 10absolute pressure0/100 bar33405A01119011
Pressure switches EDS 10absolute pressure0/160 bar33405A01120011
Pressure switches EDS 10absolute pressure0/250 bar33405A01121011
Pressure switches EDS 10absolute pressure0/400 bar33405A01122011
Pressure switches EDS 10absolute pressure0/600 bar33405A01123011
  • in-stock items
  • manufactured goods

Measuring accuracy
Deviation from the characteristic curve according to IEC 60770 – limit point calibration (non-linearity, hysteresis, repeatability)
≤ 0/0.4 bar ≤ ± 0.5 % FSO
Long-term stability
≤ ± 0.3 % FSO/Jahr ≤ ±
Display
4-digit, 7-segment, LED display, red,
Anzeigebereich -1.999/+9.999,
visible area 22.5 x 10.5 mm,
4 LEDs für umschaltbare Druckeinheiten (bar, mbar, psi, MPa),
Status indication switching output,
Schaltausgang 1: grüne LED,
Switching output 2: yellow LED
Measuring range
see ordering table
Overpressure safety
< 600 bar: at least 2 x FS
Burst pressure
at least 3 x FS
Operating temperature range
Medium:
-40/+125 °C
Ambient:
-40/+85 °C
Storage:
-40/+100 °C
Process connection
G½ (DIN 3852)
material
Housing:
plastic (PA 6.6), highly impact-resistant and corrosion-resistant
pressure connection:
Stainless steel 316 L
diaphragm:
Stainless steel 316 L
Seal:
FKM (Viton)
Supply voltage
DC 18 − 30 V
Current input
< 40 mA
switching outputs
2 open collector (PNP), SIO mode, max. 125 mA
Switching delay:
0 to 50 s
repeatability:
≤ ± 0.1 % FSO
switching cycles:
> 100 x 106
Switching frequency:
max. 200 Hz
Electrical connection

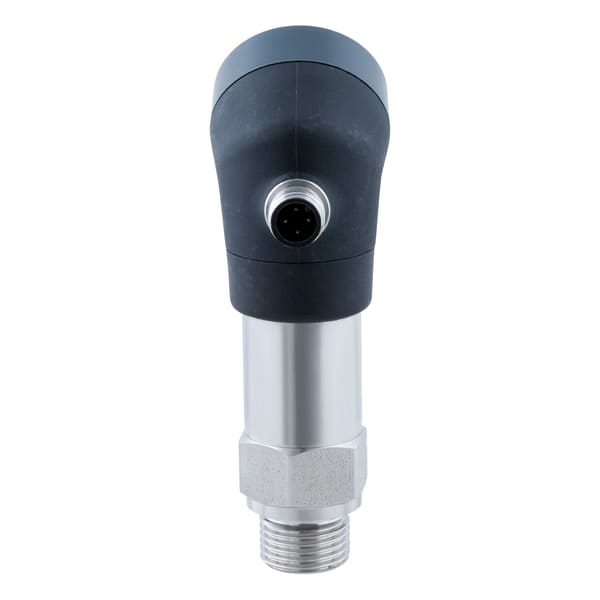

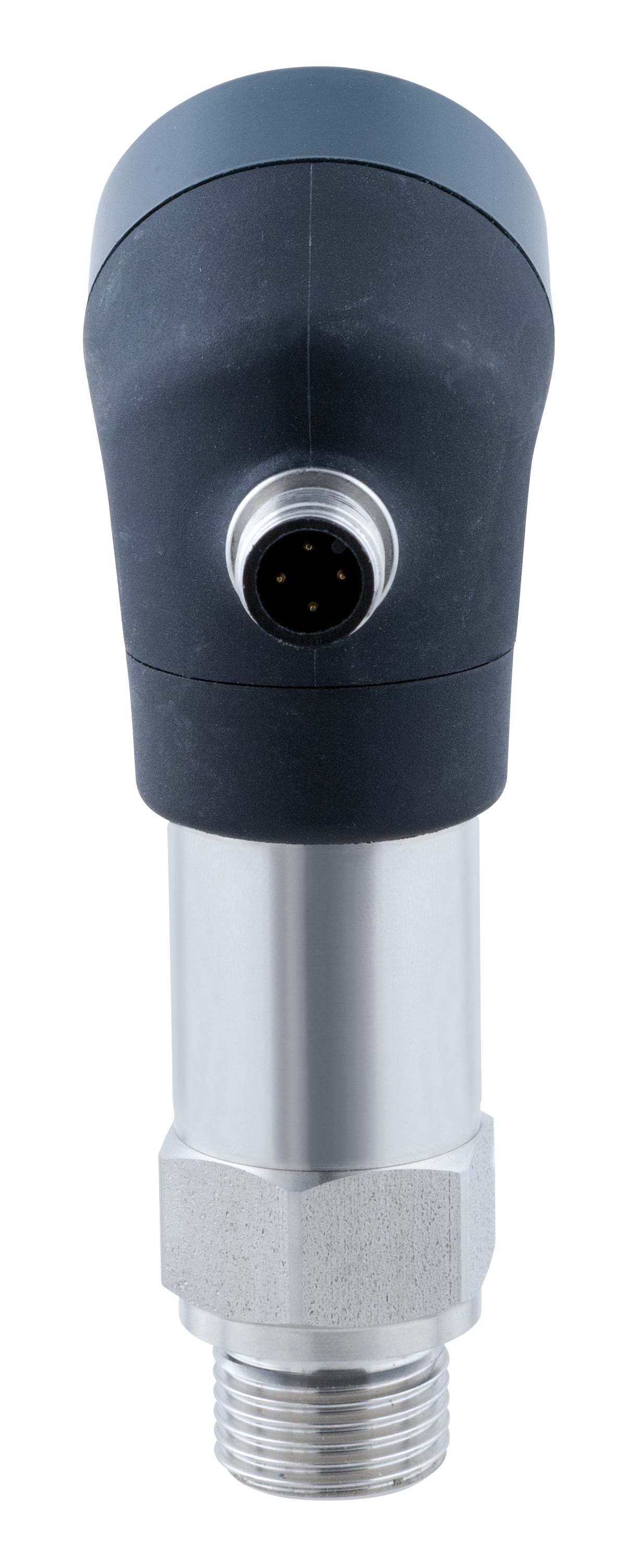

Connector M12 x 1, 4-pin, Metal
Degree of protection
IP 67 (EN 60529)
CE conformity
EMC Directive 2014/30/EU
RoHS-Richtlinie 2011/65/EU
Pressure Equipment Directive 2014/68/EU (module A)

S619_EDS10_EN.PDF
