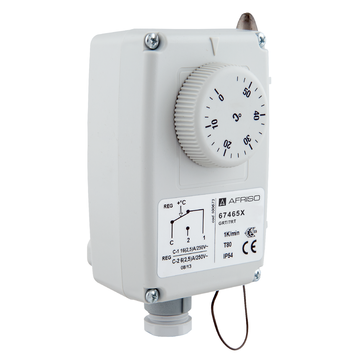

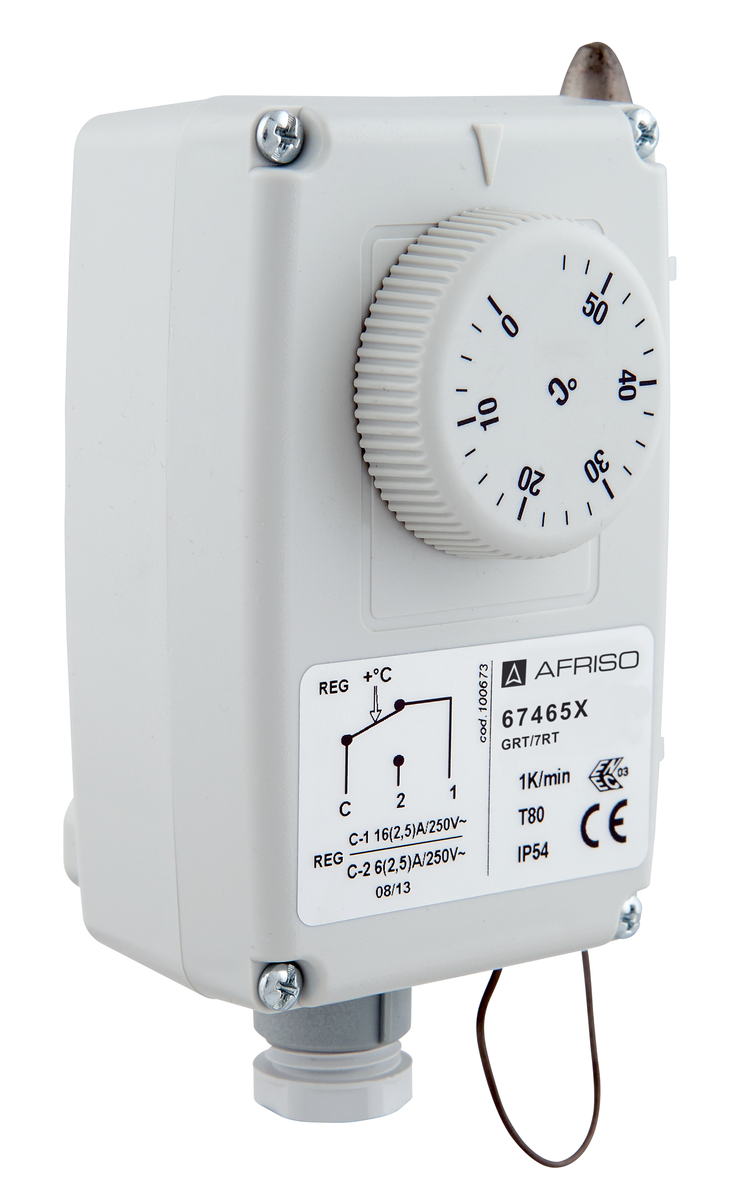

Room thermostats with housing GRT

AFRISO Gehäuse-Raumthermostat GRT/ETR 0/60C, von außen einstellbar VOR 75770 object_image_82815imagemain_en

AFRISO Gehäuse-Raumthermostat GRT/ERT 0/40C, von innen einstellbar VOR 75790

AFRISO Gehäuse-Raumthermostat GRT/ETR 0/55C, von innen einstellbar VOR 75800

AFRISO Gehäuse-Raumthermostat GRT/ETR 0/60C, von außen einstellbar SAL 75770

AFRISO Gehäuse-Raumthermostat GRT/ERT 0/40C, von außen einstellbar SAR 75760

AFRISO Gehäuse-Raumthermostat GRT/ETR 0/60C, von außen einstellbar BEF 75770

AFRISO Gehäuse-Raumthermostat GRT/ERT 0/40C, von innen einstellbar BEF 75790

AFRISO Gehäuse-Raumthermostat GRT/ETR 0/55C, von innen einstellbar BEF 75800

Data sheet room thermostats with housing GRT

Benefits

Mechanical temperature controller
For monitoring of greenhouses
For use in animal breeding applications
Easy wall mounting

Application

Mechanical room thermostat for industrial use. Due to the high degree of protection, the device can be used in humid rooms and in animal breeding applications. The room thermostats are also suitable for temperature monitoring in greenhouses.

Versions

	Adjustment	Operating range	Part no.
Room thermostat with housing GRT/ERT/ETR	External	0/40 °C	67464X
Room thermostat with housing GRT/ERT/ETR	External	0/55 °C	67465X
Room thermostat with housing GRT/ERT/ETR	Internal	0/40 °C	67466X
Room thermostat with housing GRT/ERT/ETR	Internal	0/55 °C	67467X

Blue part no. = in-stock items

Downloads

	Description	Format	Language	Download / Link
Data sheet room thermostats with housing GRT	Data sheet	PDF
Room thermostats with housing GRT	Declaration of Conformity	PDF

Description

The temperature measured at the probe causes a change in the volume of the measuring liquid. Electrical switching is triggered by the force acting.

Technical data

Type

GRT

Operating range

See ordering table

Tolerance

±0.4 %/10 K

Switching differential

0/40 °C:

∆T 2 ± 1 K

0/55 °C:

∆T 3 ± 1 K

Setting

GRT/ERT/ETR:

External
Internal

Probe

Copper, nickel-plated

Probe element

Liquid-filled

Operating temperature range

Housing:

Max. 65 °C

Housing

Plastic (PVC), grey (RAL 7035)

Cable entry

Plastic (PVC), black
M16 x 1.5

Degree of protection

IP 54 (EN 60529)

Electrical switching contact

Changeover contact

Contact rating

NC:

AC 250 V, 16 (2.5) A

NO:

AC 250 V, 6 (2.5) A

Technical drawings

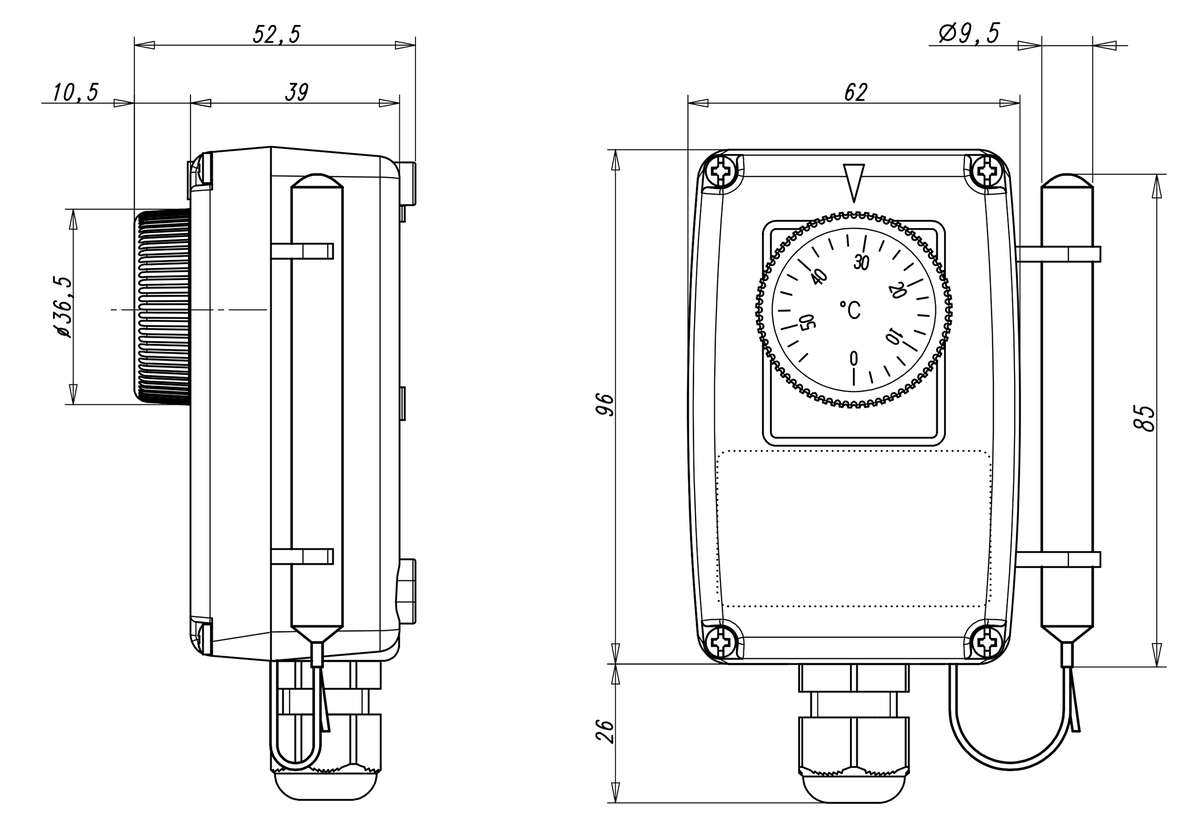

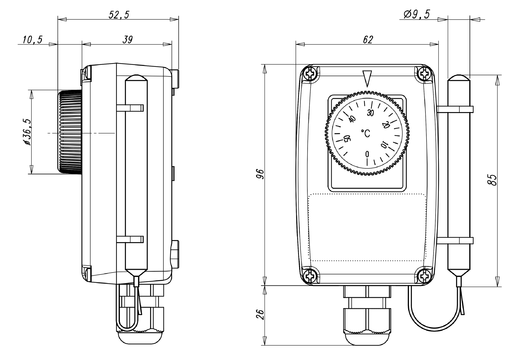

GRT/7RT, external adjustment (0-55 °C)

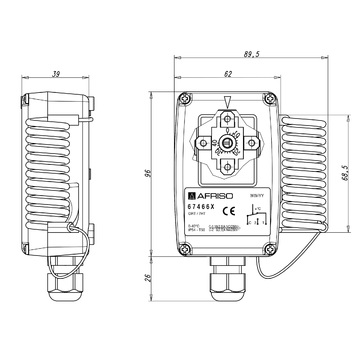

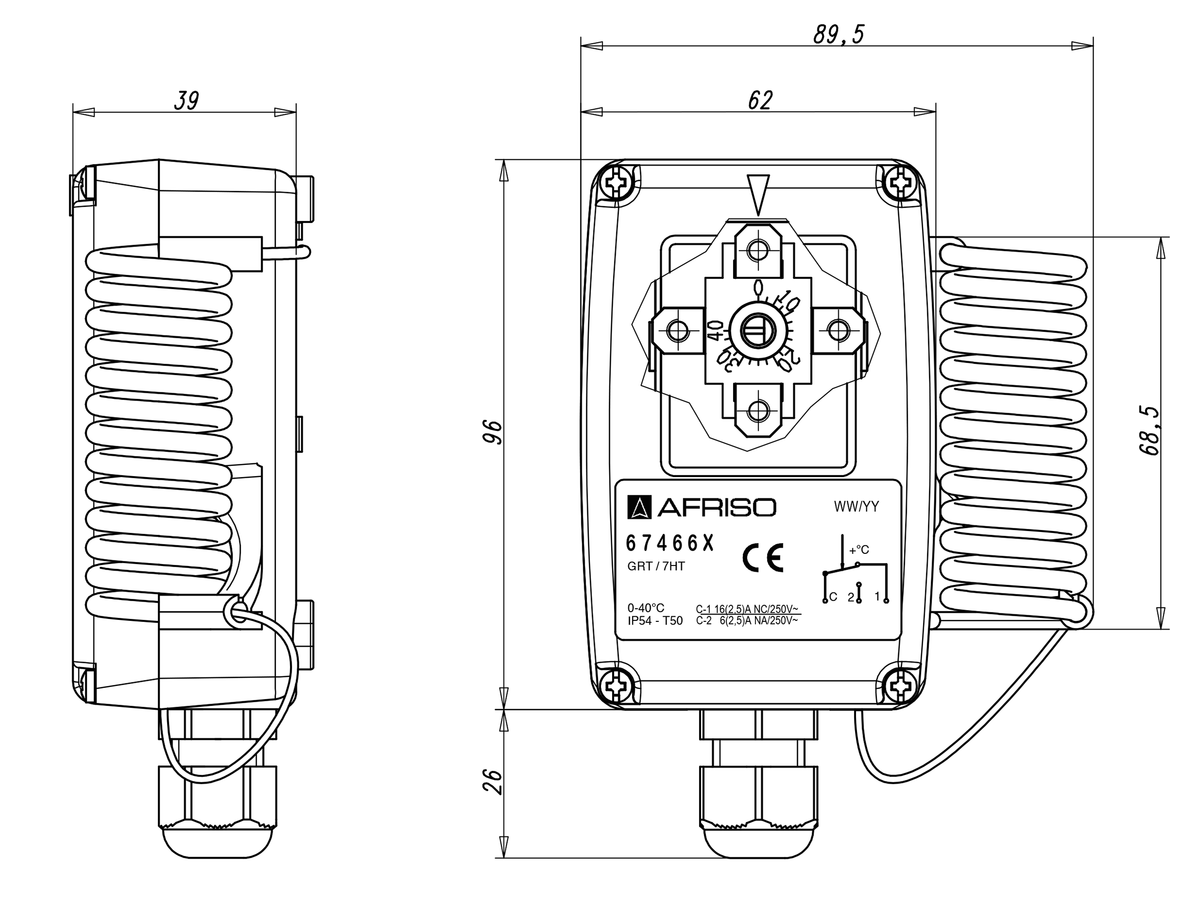

GRT/7HT, radial, internal adjustment (0-40 °C)

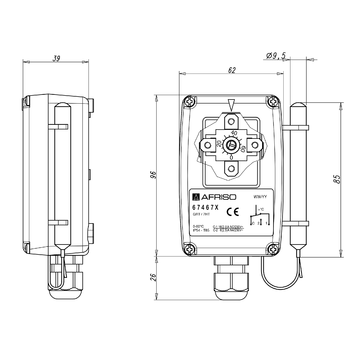

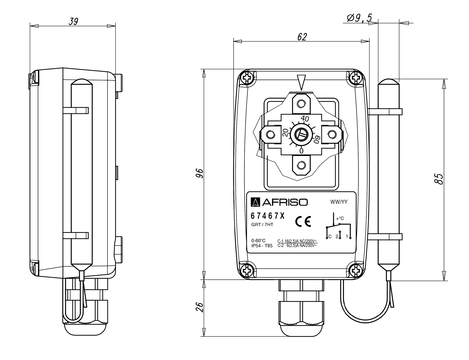

GRT/7HT, internal adjustment (0-55 °C)

Switching scheme
