Boiler manifold KSV 125 HW for heating pump assemblies PrimoTherm^®

AFRISO Kesselverteiler KSV 125-2 HW 70kW, für Heizungspumpengruppen PrimoTherm VOR 111520 object_image_92240imagemain_en

AFRISO Kesselverteiler KSV 125-2 HW 70kW, für Heizungspumpengruppen PrimoTherm VOR 111520

AFRISO Kesselverteiler KSV 125-3 HW 70kW, für Heizungspumpengruppen PrimoTherm VOR 111530

AFRISO Kesselverteiler KSV 125-2 70kW, für Heizungspumpengruppen PrimoTherm SAL 111420 111430 111440 111450 111470 111480 111490 111500 111520 111530

Data sheet Boiler manifold KSV 125 HW for heating pump assemblies PrimoTherm^®

Benefits

Compact and robust version in form-fit insulation
For two or three heating pump assemblies, with optional hydraulic separator
2 wall mounting bracket for easy mounting included
AFRISO boiler manifolds are tightness-tested in the factory.

Application

For distribution of the heating circuit water in sealed heating systems as per EN 12828 from the boiler to the heating pump assemblies PrimoTherm^®.

Versions

	Heating circuits	Hydraulic separator	Part no.	Remember

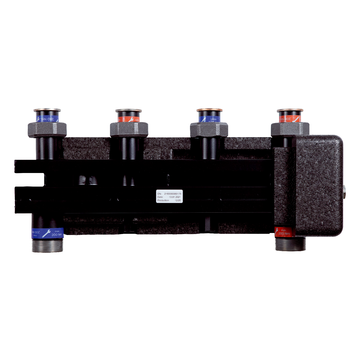

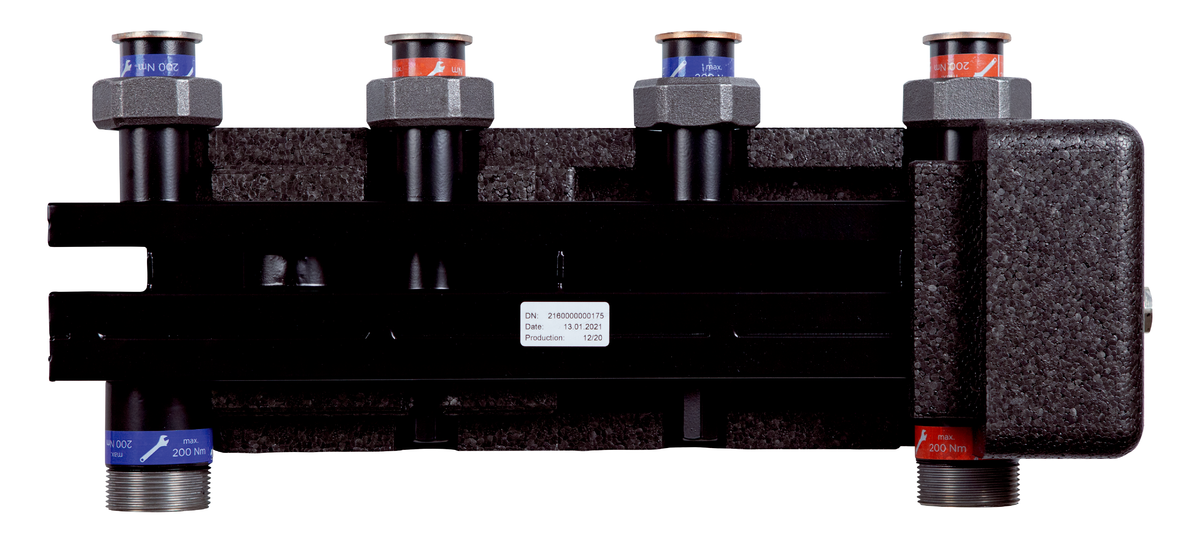

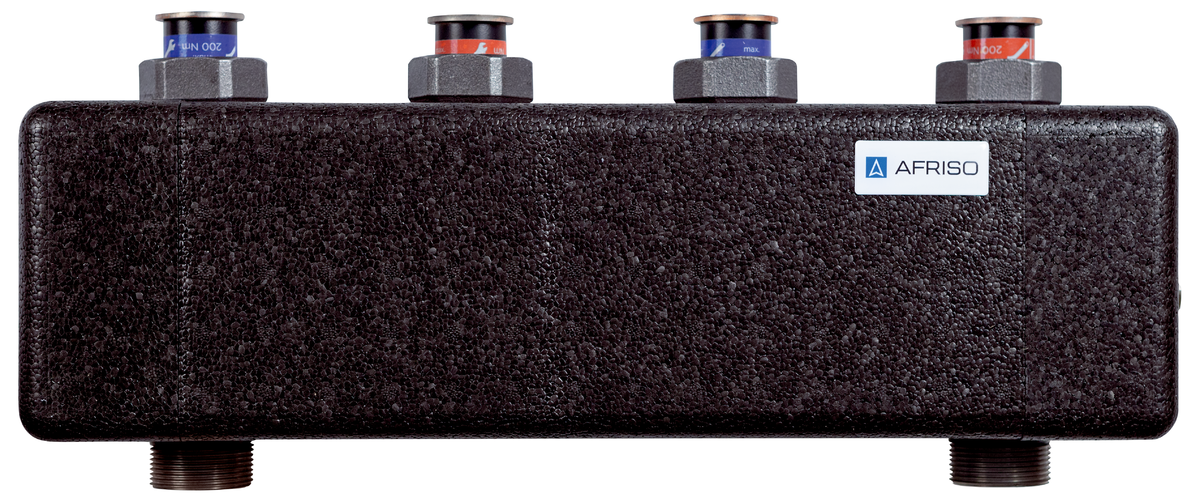

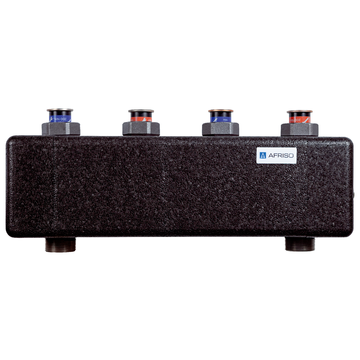

Boiler manifold KSV 125-2 HW 70 kW	2	Yes	77314

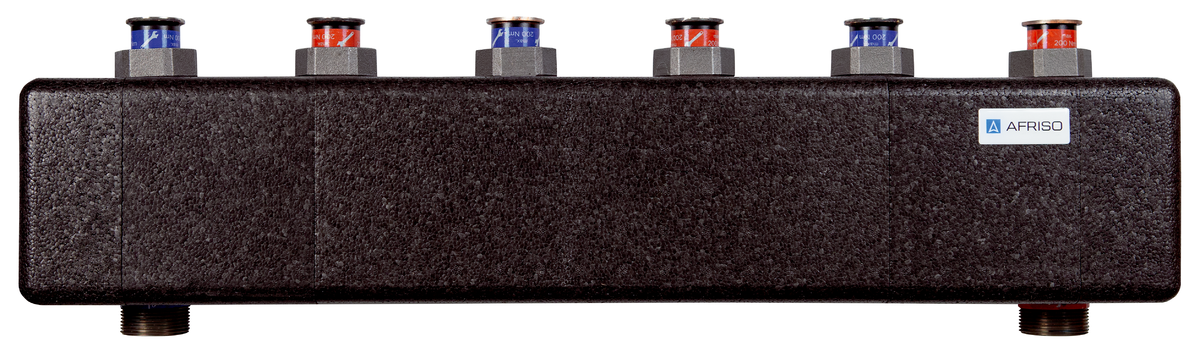

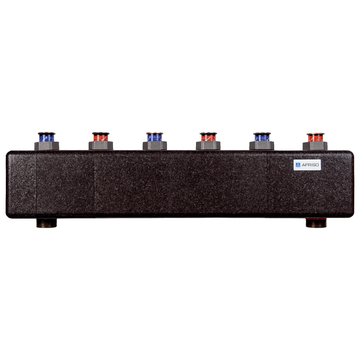

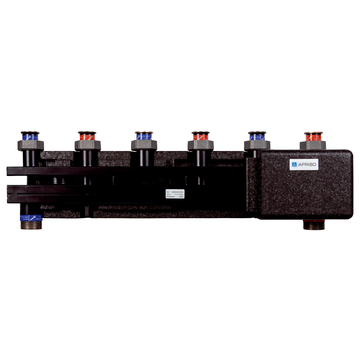

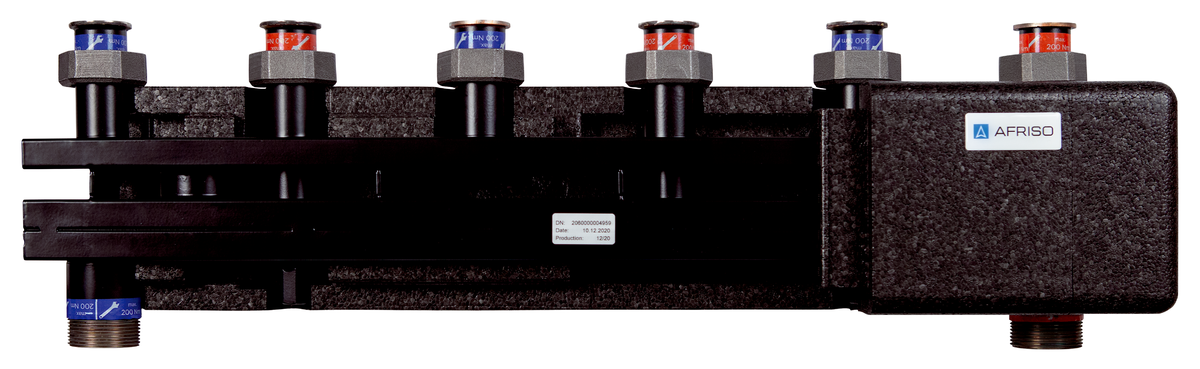

Boiler manifold KSV 125-3 HW 70 kW	3	Yes	77315

Blue part no. = in-stock items

Downloads

	Description	Format	Language	Download / Link
Data sheet Boiler manifold KSV 125 HW for heating pump assemblies PrimoTherm^®	Data sheet	PDF
Boiler manifold KSV 125	Operating instructions	PDF

Description

Boiler manifold as combination supply and return manifold for two or three heating pump assemblies. With integrated hydraulic separator for separation of circuits. Connection to boiler via G1½ threaded sockets, bottom, two connections G½ for drain/temperature probe. Connection to heating pump assembly via flat-sealing union nut G1½. AFRISO boiler manifolds are tightness-tested in the factory; they are maintenance-free.

Technical data

System connections

Boiler side:

Threaded socket G1½ male

Pump assembly:

Union nut G1½, flat-sealing

Axis distance

125 mm for pump assembly

Operating temperature range

Medium:

Max. 110 °C

Flow

3 m³/h

System pressure

Max. 6 bar

Polypropylene EPP

Scope of delivery

Boiler manifold
2 x wall mounting bracket
Insulation
