Data sheet digital display units DA 10/12/14
Afriso Data sheet digital display units DA 10/12/14

Versions

Part no. Remember
Display unit DA 10 31281
Display and control unit DA 12 31282
Display and control unit DA 14 31283
Wall mounting housing WAG 01 for mounting of one DA 31287
Wall mounting housing WAG 02 for mounting of two DAs 31288
Wall mounting housing WAG 03 for mounting of three DAs 31289
Wall mounting housing WAG 04 for mounting of four DAs 31290

Blue part no. = in-stock items

Description Format Language Download / Link
Data sheet digital display units DA 10/12/14 Data sheet PDF
Afriso Data sheet digital display units DA 10/12/14
Digital display units DA 10/12/14 Operating instructions PDF
Afriso Digital display units DA 10/12/14
Table of resistance of oil components Equipment for fuel oil storage tanks and oil carrying pipes PDF
Afriso Table of resistance of oil components
Digital display unit in plastic housing for control panel mounting. With grey display and automatic off function for the backlight. The universal measurement input can be configured as a current input or a voltage input. Standard bearing charts for cylindrical horizontal tanks and spherical tanks are pre-programmed, additional units can be selected or set up. The units are scalable and shown as bar charts. Limit values can be displayed via a window and a trend function (rising/falling). With display message (flashing error text) if values are exceeded, parameter backup for restoring previous configurations and potentiometer for test purposes.
Display
5-digit graphical LC display,
With backlight,
Text-based user interface,
User interface language selectable (English/German/French/Italian),
Freely selectable units,
Custom display units can be defined
Measuring range
± 99,999 Digits
Start and end values scalable as required
Linearity
± 0.1 % v. Mw.
Resolution
Decimal point position can be set as required
Response time
< 0.2 s
Operating temperature range
Ambient:
0/50 °C
Supply voltage
AC 50 – 253 V, 4.4 VA
DC 20 – 253 V, 2.5 W
Sensor supply
Integrated, galvanically isolated supply voltage for transducer: ≥ DC 21 V at 20 mA
Sensor input
All analogue standard signals, e.g. 4–20 mA, 0–20 mA, 0–1 V, 0–10 V as well as potentiometer
Analogue output
0/4–20 mA, galvanically isolated
Analogue output 2
DA 12:
0–10 V, galvanically isolated
DA 14:
0–10 V, galvanically isolated
Switching output (Switching hysteresis adjustable)
DA 12:
2 voltage-free changeover contacts
DA 14:
4 voltage-free changeover contacts
Contact rating:
AC 250 V, 2 A, 100 VA
Housing (Standard rack mounting housing)
W x H x D:
96 x 48 x 135 mm
Panel cut out
W x H:
92 x 45 mm
Degree of protection (front)
IP 65 (EN 60529)
Electrical connection
Plug-in screw terminals (1.5 mm<sup>2</sup>)
Linearisation
Customer-specific linearisation with a max. of 24 points for the indication of volume (e.g. litres) in non-linear tanks. Bearing charts for cylindrical horizontal tanks and spherical tanks are pre-programmed.
Min./max. value memory
The highest and lowest values reached during operation can be displayed.
DA 10/12/14, DL 10
DA 10/12/14, DL 10
Afriso
Dimensions (in mm)
Panel cut out
Panel cut out
Afriso
Dimensions (in mm)
Wall mounting housing WAG 01/02
Wall mounting housing WAG 01/02
for up to 2 DA 10/12/14
Afriso
Dimensions (in mm)
  1. Fixing holes
Wall mounting housing WAG 03/04
Wall mounting housing WAG 03/04
for up to 4 DA 10/12/14
Afriso
Dimensions (in mm)
  1. Fixing holes
Connection diagram
Connection diagram
for standard application
Afriso

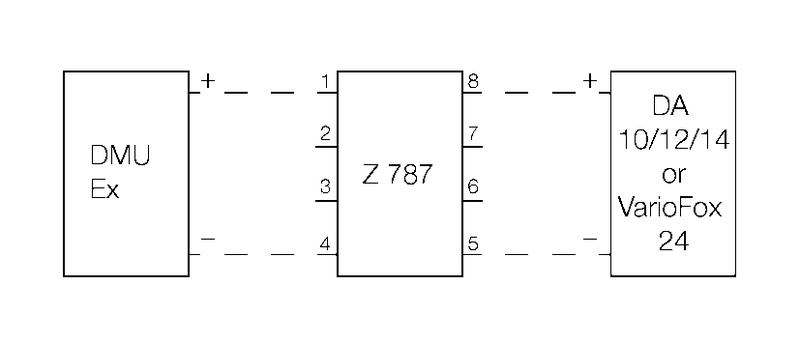

Connection diagram
Connection diagram
for EX application
