Data sheet Standard Bourdon tube pressure gauges for refrigeration engineering type D8 with glycerine filling
Afriso Data sheet Standard Bourdon tube pressure gauges for refrigeration engineering type D8 with glycerine filling

Versions

Housing ∅ Connection Alignment Housing Accuracy class Type Part no. Remember
100 mm G½B Bottom Stainless steel 304 1,0 RF100KTGly D802 85231802
100 mm G½B Bottom Stainless steel 304 1,0 RF100KTGly D802 85232802
100 mm G½B Bottom Stainless steel 304 1,0 RF100KTGly D802 85233802

Blue part no. = in-stock items

Housing ∅ Connection Alignment Housing Accuracy class Type Part no. Remember
100 mm G½B Bottom back Stainless steel 304 1,0 RF100KTGly D812 85231812
100 mm G½B Bottom back Stainless steel 304 1,0 RF100KTGly D812 85232812
100 mm G½B Bottom back Stainless steel 304 1,0 RF100KTGly D812 85233812

Blue part no. = in-stock items

Description Format Language Download / Link
Data sheet Standard Bourdon tube pressure gauges for refrigeration engineering type D8 with glycerine filling Catalog page PDF
Afriso Data sheet Standard Bourdon tube pressure gauges for refrigeration engineering type D8 with glycerine filling
Mounting of pressure gauge Operating instructions PDF
Afriso Mounting of pressure gauge
Bourdon tube pressure gauges, capsule pressure gauges, diaphragm pressure gauges RF...Ex, KP...Ex, PF...Ex Operating instructions PDF
Afriso Bourdon tube pressure gauges, capsule pressure gauges, diaphragm pressure gauges RF...Ex, KP...Ex, PF...Ex
Bourdon tube pressure gauges, capsule pressure gauges, diaphragm pressure gauges, spring diaphragm pressure gauge for differential pressure Operating instructions PDF
Afriso Bourdon tube pressure gauges, capsule pressure gauges, diaphragm pressure gauges, spring diaphragm pressure gauge for differential pressure
Enquiry pressure gauges Pressure measuring instruments PDF
Afriso Enquiry pressure gauges
Dials for pressure gauges – graduation Pressure measuring instruments PDF
Afriso Dials for pressure gauges – graduation
Temperature scales for refrigerant: Dew point temperature - examples range -1/+24 bar Pressure measuring instruments PDF
Afriso Temperature scales for refrigerant: Dew point temperature - examples range -1/+24 bar
DNV-GL Type approval Products PDF
Afriso DNV-GL Type approval
Type
D8
Nominal size
100
Accuracy class (EN 837-1/6)
1,0
Application area
Static load:
¾ x full scale value
Dynamic load:
⅔ x full scale value
Short-term:
Full scale value
Operating temperature range
Ambient:
-20/+60 °C
Temperature performance
Indication error when the temperature of the measuring system deviates from the normal temperature of 20 °C:
of full scale value
Degree of protection
IP54 (EN 60529)

Standard design

Connection
Stainless steel 316 Ti/316 L, bottom or bottom back
G½B
Measuring element
Bourdon tube, stainless steel 316 Ti/316 L
"C" type tube
Movement
Brass
Dial
Aluminium, white
Black
Pointer
Aluminium, black
Housing
Stainless steel 304, with blow-out
Crimped bezel
Stainless steel 304
Window
Plastic
Filling liquid
Glycerine (99.5 %)

Options

  • Back flange
  • Clamp fixing
  • Damping screw
  • Special scales
  • Other process connections
object_image_82391_en
object_image_82391_en
Afriso

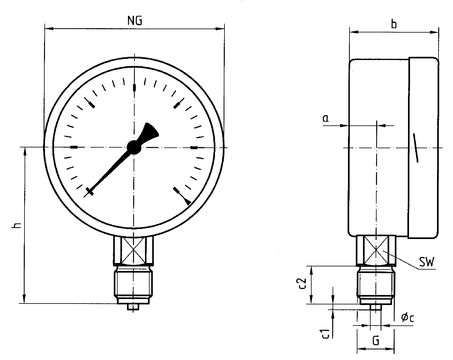

dimensions (mm):
NG a b ∅c c1 c2 G h SW
100 15,6 49 6 3 20 G½B 86 22
object_image_82393_en
object_image_82393_en
Afriso
dimensions (mm):
NG b ∅c c1 c2 e g G SW
100 49 6 3 20 26,5 81 G½B 22
