Complete package flue gas analysis BLUELYZER ST set Basic

 ANW 21990 60 80  ANW 21990 60 80

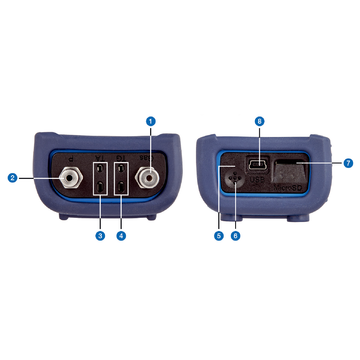

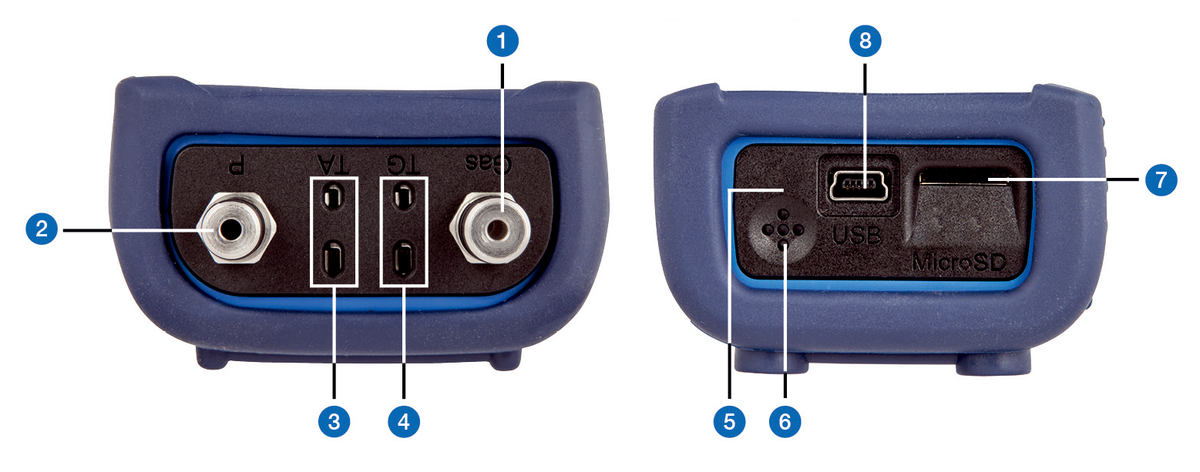

 ANW 21990 60 80 <div class="gallery-information"> <b>Legend:</b> <ol> <li>Gas inlet</li> <li>Pressure measurement (draft)</li> <li>Temperature connections e.g. for ambient air temperature or combustion air temperature</li> <li>Temperature connections e.g. for flue gas temperature</li> <li>Infrared printer interface</li> <li>Signal unit (speaker)</li> <li>MicroSD card slot</li> <li>Mini USB connection for power supply unit/charger</li> </ol> </div>
 VOR 21990 60 80 object_image_58197imagemain_en
 DRA 21990 60 80
 DRU 21990 60 80
 ANW 21990 60 80
 ANW 21990 60 80
 ANW 21990 60 80
 ANW 21990 60 80
 ANW 21990 60 80
Data sheet Complete package flue gas analysis BLUELYZER ST set Basic
AFRISO Data sheet Complete package flue gas analysis BLUELYZER ST set Basic

Versions

Part no. Remember
Flue gas analyser BLUELYZER ST set Basic P00130

Blue part no. = in-stock items

Description Format Language Download / Link
Data sheet Complete package flue gas analysis BLUELYZER ST set Basic Data sheet PDF
AFRISO Data sheet Complete package flue gas analysis BLUELYZER ST set Basic
Flue gas analyser BLUELYZER ST Operating instructions PDF
AFRISO Flue gas analyser BLUELYZER ST
NA Dust measuring instrument STM 225 for chimney sweeps NA PDF
AFRISO NA Dust measuring instrument STM 225 for chimney sweeps
Measuring ranges (measured values)
Flue gas temperature/differential temperature
0/1,150 °C
Air temperature/combustion air temperature
-20/+200 °C
Draft
-70/+70 hPa
O<sub>2</sub> measurement
0/21 Vol.-%
CO measurement
Nominal:
0/2,000 ppm
Maximum:
0/6,000 ppm
Additional technical specifications
Indication (calculated values)
CO<sub>2</sub>, CO<sub>Undiluted (air-free)</sub>, Lambda<sub/>, Dew point<sub/>, Eta efficiency, Flue gas losses qA, CO mg/m<sup>3 </sup>(natural gas), CO mg/kWh (fuel oil)
Operating temperature range
Ambient:
0/40 °C
Storage:
-20/+50 °C
Weight (measuring instrument)
Approx. 275 g
Dimensions
W x H x D:
66 x 143 x 37 mm
Degree of protection
IP 42 (EN 60529)
Display
240 x 320 pixels
W x H:
45 x 60 mm
Connections
Draft/pressure:
∅ 7 mm
Gas:
∅ 8 mm
Temperature:
Socket type K
Supply voltage
Lithium-ion battery (3.6 V/1,800 mAh)
Power supply unit (mini USB)
Battery or mains
Hours of operation (eco mode)
12 Stunden
Data memory
MicroSD card, max. 16 GB
Interfaces
Infrared,
Bluetooth<sup>®</sup>,
QR code generator,
MicroSD card slot
Approvals
VDI 4206 (Blatt 1),
DIN EN 50379-2 for O2/CO2, TA, TG, pressure,
DIN EN 50379-3 for CO
Scope of delivery
  • Flue gas analyser BLUELYZER ST
  • Calibration report
  • Protective sleeve for device with magnets
  • Power supply unit NTE 5 USB-A
  • Charging cable USB-A - mini USB
  • 5 x particle filter
  • 5 x Teflon membrane
  • Condensate filter cartridge KFP 2P
  • Flue gas combination probe, compact, AKS-K FZ 170 mm
  • Ambient air probe TFB-UL 50-1
  • Small case BlueLine
