Flue gas analyser

 ANW 120 140  ANW 120 140

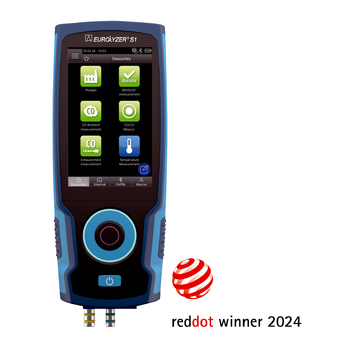

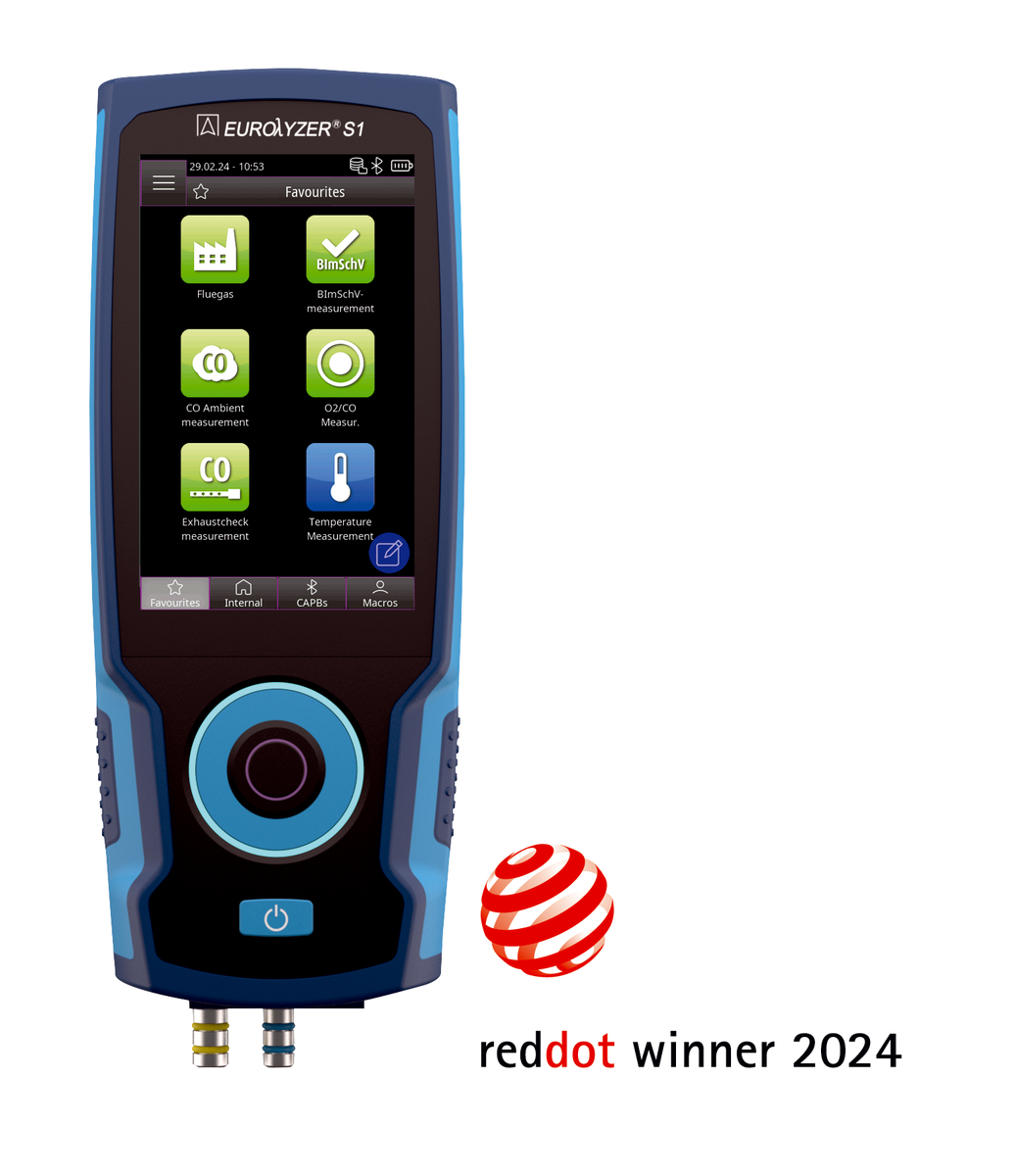

 ANW 120 140 <div class="gallery-information"> <ol> <li>USB connection for power supply unit/charger</li> <li>Infrared printer interface</li> <li>MicroSD card slot</li> <li>Signal unit (speaker)</li> <li>Gas inlet</li> <li>Pressure/differential pressure measurement (draft)</li> <li>Temperature connections e.g. for ambient air temperature or combustion air temperature</li> <li>Temperature connections e.g. for flue gas temperature</li> </ol> </div>
 VOR 120 140 object_image_58200imagemain_en
 DRA 120 140
 DRU 120 140
 ANW 120 140
Data sheet Flue gas analyser
Afriso Data sheet Flue gas analyser

Versions

Part no. Remember
Flue gas analyser P00011

Blue part no. = in-stock items

Description Format Language Download / Link
Data sheet Flue gas analyser Data sheet PDF
Afriso Data sheet Flue gas analyser
Flue gas analyser EUROLYZER STx Operating instructions PDF
Afriso Flue gas analyser EUROLYZER STx
NA Flue gas analyser NA PDF
Afriso NA Flue gas analyser
NA Flue gas analyser NA PDF
Afriso NA Flue gas analyser
NA Level sensor tester GPG 01 NA PDF
Afriso NA Level sensor tester GPG 01
Measuring ranges (measured values)
Flue gas temperature/differential temperature
0/1,150 °C
Air temperature/combustion air temperature
-20/+200 °C
Draft
-70/+70 hPa
Differential pressure
-150/+150 hPa
Barometric pressure
500/1,150 hPa
Pitot
0.5/70 m/s
O<sub>2</sub> measurement
0/21 Vol.-%
CO<sub>H2</sub> measurement
Maximum:
0/10,000 ppm
Additional technical specifications
Indication (calculated values)
CO<sub>2</sub>, CO<sub>Undiluted (air-free)</sub>, Lambda<sub/>, Dew point<sub/>, Eta efficiency, Flue gas losses qA, CO mg/m<sup>3 </sup>(natural gas), CO mg/kWh (fuel oil)
Operating temperature range
Ambient:
0/40 °C
Storage:
-20/+50 °C
Weight (measuring instrument)
459 g (depends on equipment with sensors)
Dimensions
W x H x D:
65 x 215 x 40 mm
Degree of protection
IP 42 (EN 60529)
Display
240 x 320 pixels
W x H:
45 x 60 mm
Connections
Draft/pressure:
∅ 7 mm
Gas:
∅ 8 mm
Temperature:
Socket type K
Supply voltage
Lithium-ion battery (3.6 V/2,300 mAh)
Power supply unit (mini USB)
Battery or mains
Hours of operation (eco mode)
Max. 14 Stunden
Data memory
MicroSD card, max. 16 GB
Approvals
VDI 4206 (Blatt 1),
44. BlmSchV
Scope of delivery
  • Flue gas analyser EUROLYZER STx
  • Calibration report
  • Protective sleeve for device with magnets
  • Power supply unit NTE 5 USB-A
  • Charging cable USB-A - mini USB
  • MicroSD card
  • Data logger
  • Condensate filter cartridge KFP
  • 5 x Infiltec fine filter
  • Base handle AWS-B for interchangeable probes
  • Interchangeable probe AWS-S 300 mm
  • Ambient air probe TFB-UL 50-1
