Data sheet pressure measuring instrument S4600 ST

Benefits

For measuring pressure, vacuum and differential pressure
Six (differential) pressure measuring ranges from measuring instrument for ultra-low pressure (20 mbar) to version for very high pressure (18 bar)
Barometric pressure sensor and temperature compensation for highly accurate measured value

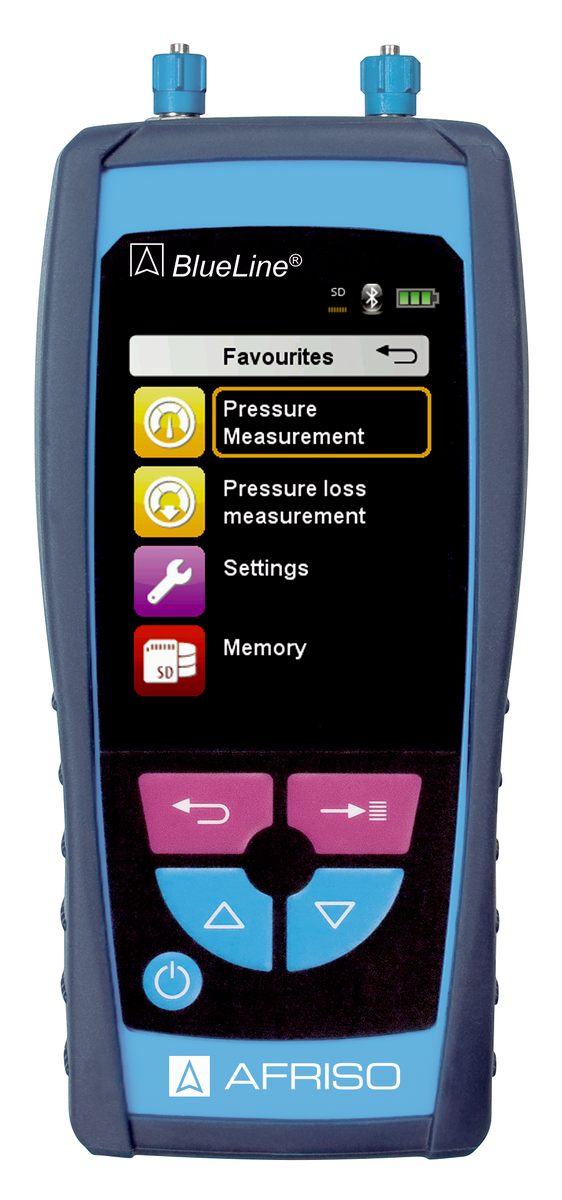

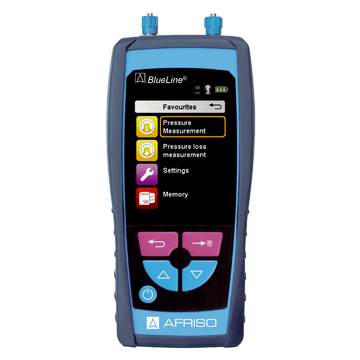

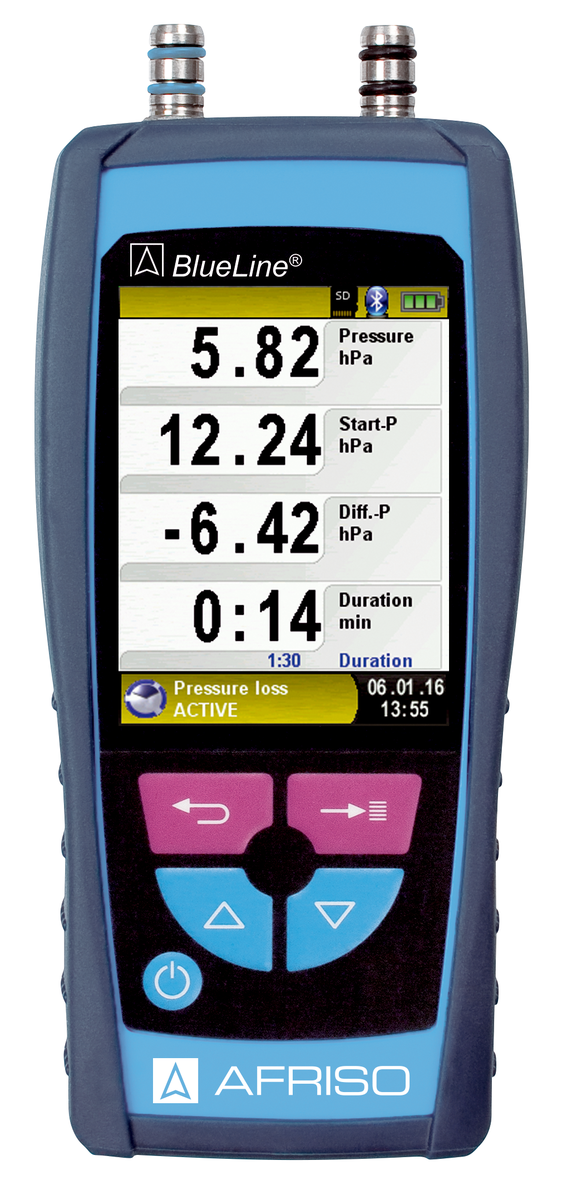

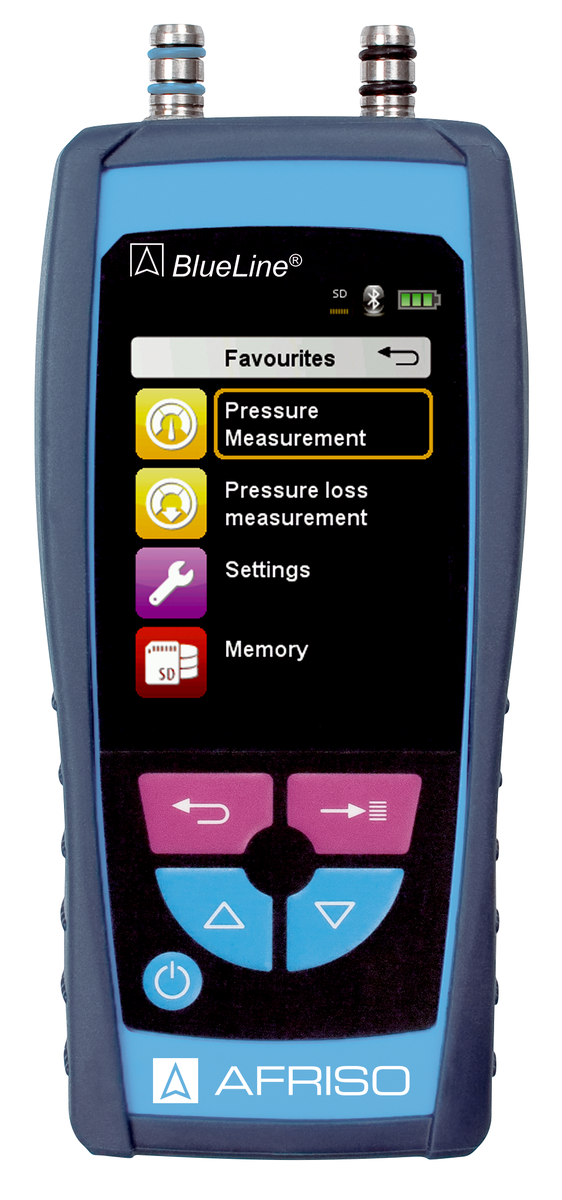

Large TFT colour display (W x H: 45 x 60 mm) for simultaneous display of 4 measured values
Measured values displayed in 9 units: mbar, Pa, hPa, kPa, mmWC, mmHg, inWC, psi, bar
Fully automatic device check, manual and automatic zero calibration during program start
MicroSD card for system-independent storage of measurement logs (HTML format) and fast software updates
Optional data logger function for long-term measurement or diagnostics (data in XML format)
Pitot measurement (air velocity) for measuring range up to 20 mbar or 150 mbar

Application

For measuring pressure, vacuum and differential pressure. For non-corrosive gaseous, dry media. Ideal for industrial, medical and air conditioning technology applications. Other typical application areas: Measurement of chimney draft, measurement of inlet pressure, flow pressure and nozzle pressure, pressure loss in flowing gases, filter inspection, ventilation systems or ducts, production and extraction facilities, vacuum measurement (laboratory), check of the connection pressure (natural gas supply pipes), burner pressure check, inspection of tanks for liquids (inlet and outlet pressure). Minimum and maximum values can be set before the measurement; if these values are reached, visual or audible alarms are triggered. The free Android app EuroSoft connect allows for transfer of measurement results to smartphones and tablets via QR code and for the visualisation of such results. Measurement logs can also be sent via e-mail.

Versions

	Measuring range	Part no.
Pressure measuring instrument S4601 ST 150 mbar	-150/+150 mbar	P00084
Pressure measuring instrument S4602 ST 20 mbar	-20/+20 mbar	P00085
Pressure measuring instrument S4610 ST 1,000 mbar	-1,000/+1,000 mbar	P00086
Pressure measuring instrument S4680 ST 8,000 mbar	-1,000/+8,000 mbar	P00089
Pressure measuring instrument S4680 ST-F 8,000 mbar, with Festo connection ⌀ 3 mm	-1,000/+8,000 mbar	P00090
Pressure measuring instrument S4699 ST-F 18,000 mbar, with Festo connection ⌀ 3 mm	-1,000/+18,000 mbar	P00091

Blue part no. = in-stock items

Downloads

	Description	Format
Data sheet pressure measuring instrument S4600 ST	Data sheet	PDF
Firmware update (CAPBs-enabled) S4600 ST - installation instructions	Portable measuring instruments	PDF
Firmware	Portable measuring instruments	BIN
NA Dust measuring instrument STM 225 for chimney sweeps	NA	PDF

Technical data

device model	S4601 ST	S4602 ST	S4610 ST	S4680 ST	S4680 ST-F	S4699 ST-F
Measuring range	-150/+150 mbar	-20/+20 mbar	-1,000/+1,000 mbar	-1,000/+8,000 mbar	-1,000/+8,000 mbar	-1,000/+18,000 mbar
max. overpressure	1.35 bar	0.25 bar	3.5 bar	16 bar	16 bar	28 bar
Resolution	0.01 mbar	0.001 mbar	0.1 mbar	0.1 mbar	0.1 mbar	1 mbar
	(< 99.99 mbar)		(< 999.9 mbar)	(< 999.9 mbar)	(< 999.9 mbar)
	0.1 mbar		1 mbar	1 mbar	1 mbar
	(> 100 mbar)		(> 1,000 mbar)	(> 1,000 mbar)	(> 1,000 mbar)
Accuracy	± 0.03 mbar	± 0.003 mbar	± 0.3 mbar	± 1.2 mbar	± 1.2 mbar	3 mbar
	(< 6 mbar)	(< 0.6 mbar)	(< 60 mbar)	(< 240 mbar)	(< 240 mbar)	(< 600 mbar)
	± 0.5 % v. Mw.	± 0.5 % v. Mw.	± 0.5 % v. Mw.	± 0.5 % v. Mw.	± 0.5 % v. Mw.	± 0.5 % v. Mw.
	± 1 Digit	± 1 Digit	± 1 Digit	± 1 Digit	± 1 Digit	± 1 Digit
	(> 6 mbar)	(> 0.6 mbar)	(> 60 mbar)	(> 240 mbar)	(> 240 mbar)	(> 600 mbar)
Pitot	2/50 m/s	0.5/50 m/s
Resolution	0.1 m/s	0.1 m/s
Accuracy	0.8 m/s	0.3 m/s

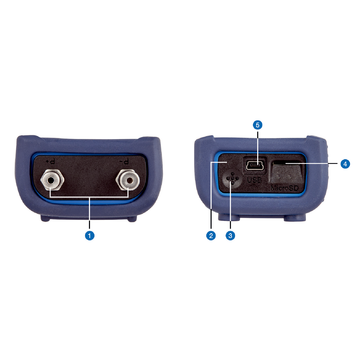

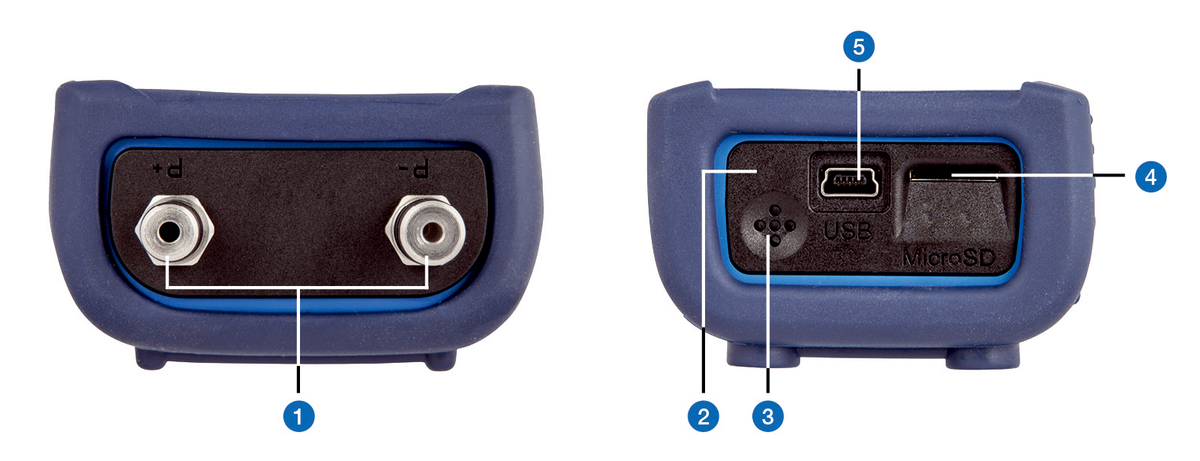

Hose connection	∅ 8 mm	∅ 8 mm	∅ 8 mm	∅ 8 mm	∅ 3 mm (Festo)	∅ 3 mm (Festo)

Operating temperature range: Ambient:; 0/40 °C; Storage:; -20/+50 °C

Hours of operation (eco mode)

Weight

Dimensions: W x H x D:; 66 x 143 x 37 mm

Degree of protection

Display: TFT colour display 2.8 "; W x H:; 45 x 60 mm

Supply voltage

Data memory

Interfaces

Approvals

Scope of delivery

Measuring instrument
Calibration report
Power supply unit
Charging cable USB-A - mini USB
MicroSD card
Protective sleeve with magnet for device
